RO Membrane HR-2012-100

Introduction：

The RO Membrane HR-2012-100 is a high-quality reverse osmosis membrane that is designed to provide efficient and reliable water purification. With its advanced technology and superior performance, it is widely used in various industries for producing clean and pure water.

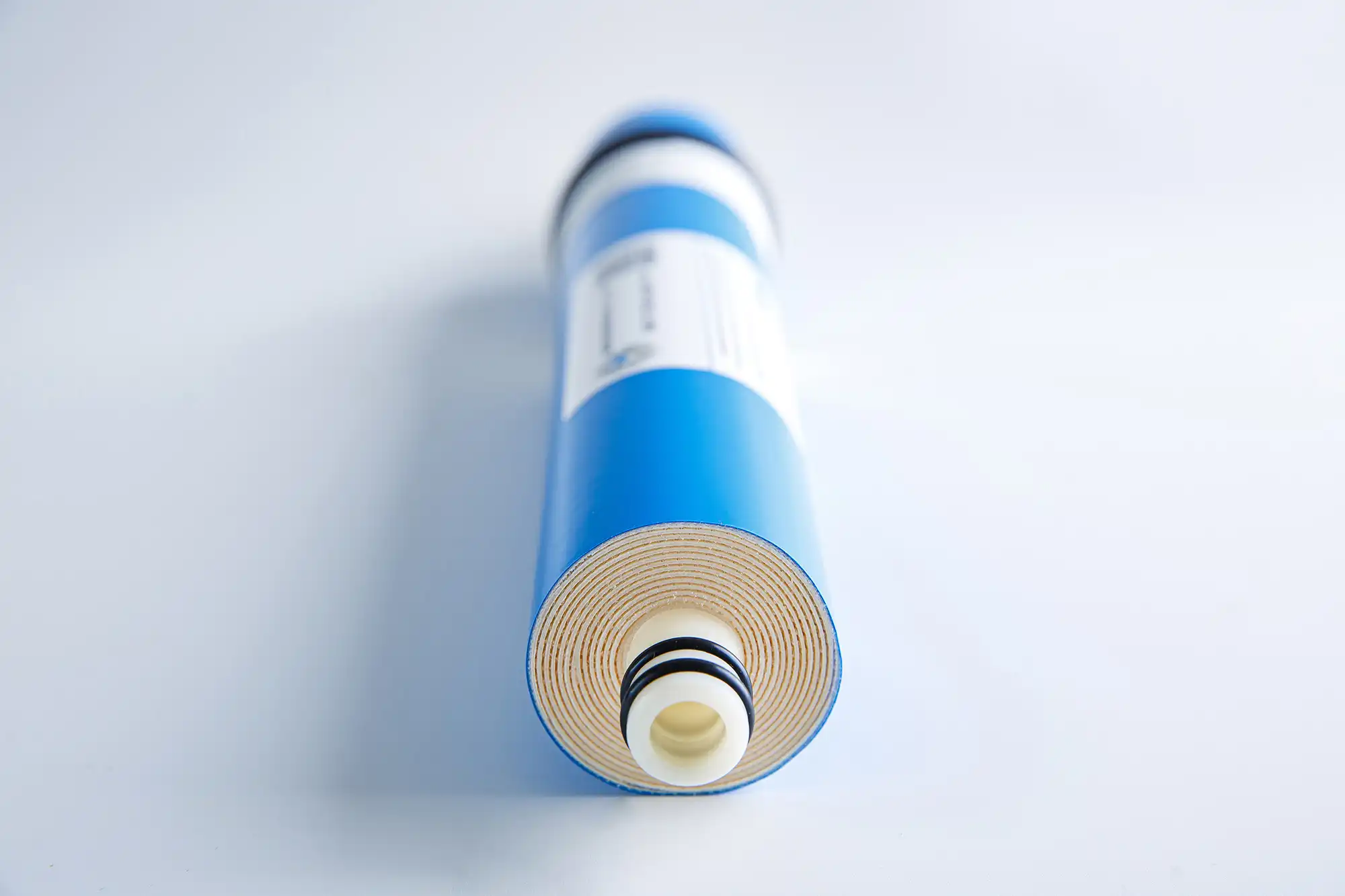

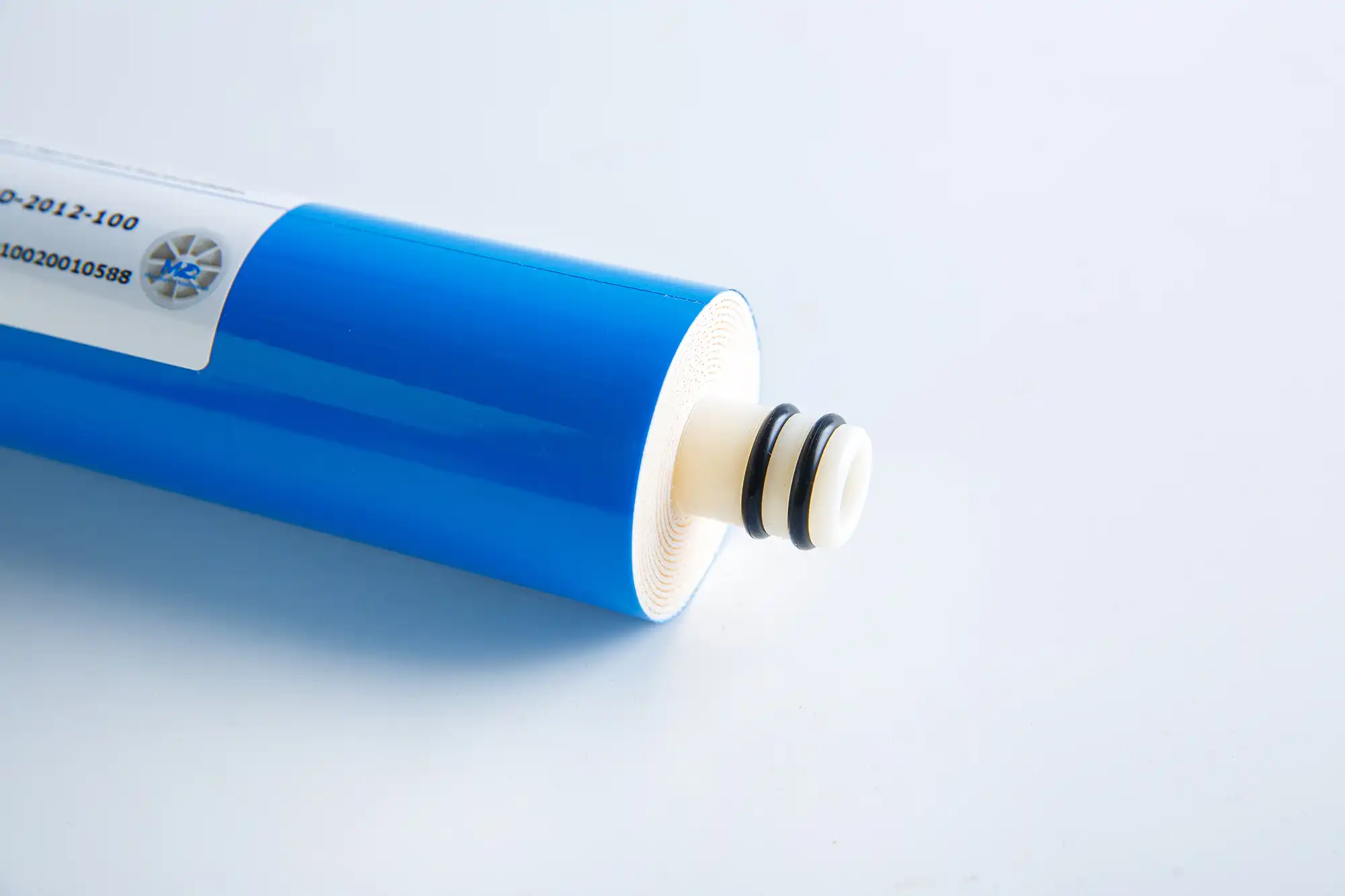

Product Details: The RO Membrane HR-2012-100 is a thin film composite membrane with a spiral-wound design. It is made up of several layers, including a thin polyamide membrane, a polysulfone support layer, and a permeate collecting tube. These layers work together to effectively remove impurities and contaminants from the water, ensuring a high-quality output.



Product Standards:

 The RO Membrane HR-2012-100 meets all the necessary industry standards and has undergone rigorous testing to ensure its performance and durability. It complies with ISO 9001:2015 standards, guaranteeing its reliability and safety.

Technical Specifications:

- Membrane Type: Thin Film Composite

- Membrane Material: Polyamide

- Membrane Configuration: Spiral-Wound

- Permeate Flow Rate: 15.78 liters per hour

- Salt Rejection Rate: 96%

- Operating Pressure: 60-150 psi

- pH Range: 2-11

- Maximum Operating Temperature: 45°C (113°F)

Model			HR-2012-100
Salt Rejection(%)			97%
Permeate Flow GPD(m³/d)			100(0.38)
Effective Membrane Area ft2 (m2)			6(0.56)
Operating Pressure psi(Mpa)			60(0.41)
Max Operating Pressure psi(Mpa)			150(1)

Model	A/mm	B/mm	C/mm	D1/mm	D2/mm
HR-2012-100	298	46	17	21.5	22.5

Product Attributes:

- High salt rejection rate

- Excellent permeate flow rate

- Wide pH tolerance

- Superior fouling resistance

- Long lifespan

- Easy installation and maintenance

Product Functions:

The RO Membrane HR-2012-100 effectively removes various impurities from water, including bacteria, viruses, dissolved solids, heavy metals, and organic compounds. It produces clean and pure water, making it suitable for drinking, industrial processes, laboratory use, and many other applications. Working Principle: The RO Membrane HR-2012-100 operates on the principle of reverse osmosis. When water is applied with pressure to one side of the membrane, the solvent molecules pass through the semi-permeable membrane, leaving behind contaminants and impurities. The purified water is collected as permeate, while the rejected impurities are discharged as concentrate or brine.

Features and Advantages:

- High-quality construction for reliable performance

- Exceptionally high salt rejection rate

- Consistent and efficient permeate flow

- pH-tolerant membrane for versatile applications - Durable and fouling-resistant design

- Simple installation and low maintenance

Applications:

The RO Membrane HR-2012-100 is widely used in various industries, including:

- Water treatment and purification systems

- Beverage production

- Pharmaceutical manufacturing

- Chemical processing

- Laboratory and research facilities

- Agriculture and irrigation

OEM Services:

MD is a professional manufacturer and supplier of RO Membrane HR-2012-100. We offer a range of standard and customized membranes to meet specific application requirements. Our membranes are certified and come with complete testing reports. We also provide OEM services and fast delivery, ensuring customer satisfaction. If you require a small-scale desalination unit for your own climate chamber, please contact us at info@md-desalination.com.

Frequently Asked Questions:

1. How often should I replace the RO Membrane HR-2012-100?

- The lifespan of the membrane depends on various factors such as feed water quality and operating conditions. However, it is recommended to replace the membrane every 2-3 years for optimal performance.

2. Can the RO Membrane HR-2012-100 remove viruses and bacteria?

- Yes, the membrane has excellent rejection capabilities and can effectively remove viruses, bacteria, and other microorganisms from the water.

3. What is the maximum operating temperature of the membrane?

- The membrane can operate up to a maximum temperature of 45°C (113°F). Exceeding this temperature may reduce its performance and lifespan.

MD:

MD is a leading manufacturer and supplier of RO Membrane HR-2012-100, specializing in providing high-quality membranes for various water treatment applications. Our membranes are tested and certified, ensuring superior performance and reliability. We offer both standard and customized membranes to meet specific customer requirements. With our fast delivery and secure packaging, we ensure that our customers receive their orders promptly and in perfect condition. We also provide OEM services and support testing for our products. For all your RO membrane needs, trust MD for exceptional quality and service. Please note that the above content is written for professionals, buyers, and global distributors, aiming to provide accurate and reliable information about the RO Membrane HR-2012-100. All claims and specifications mentioned are based on factual information and testing reports. Feel free to contact us for any further inquiries and support.
