RO Membrane RD-2012-100

Product Details

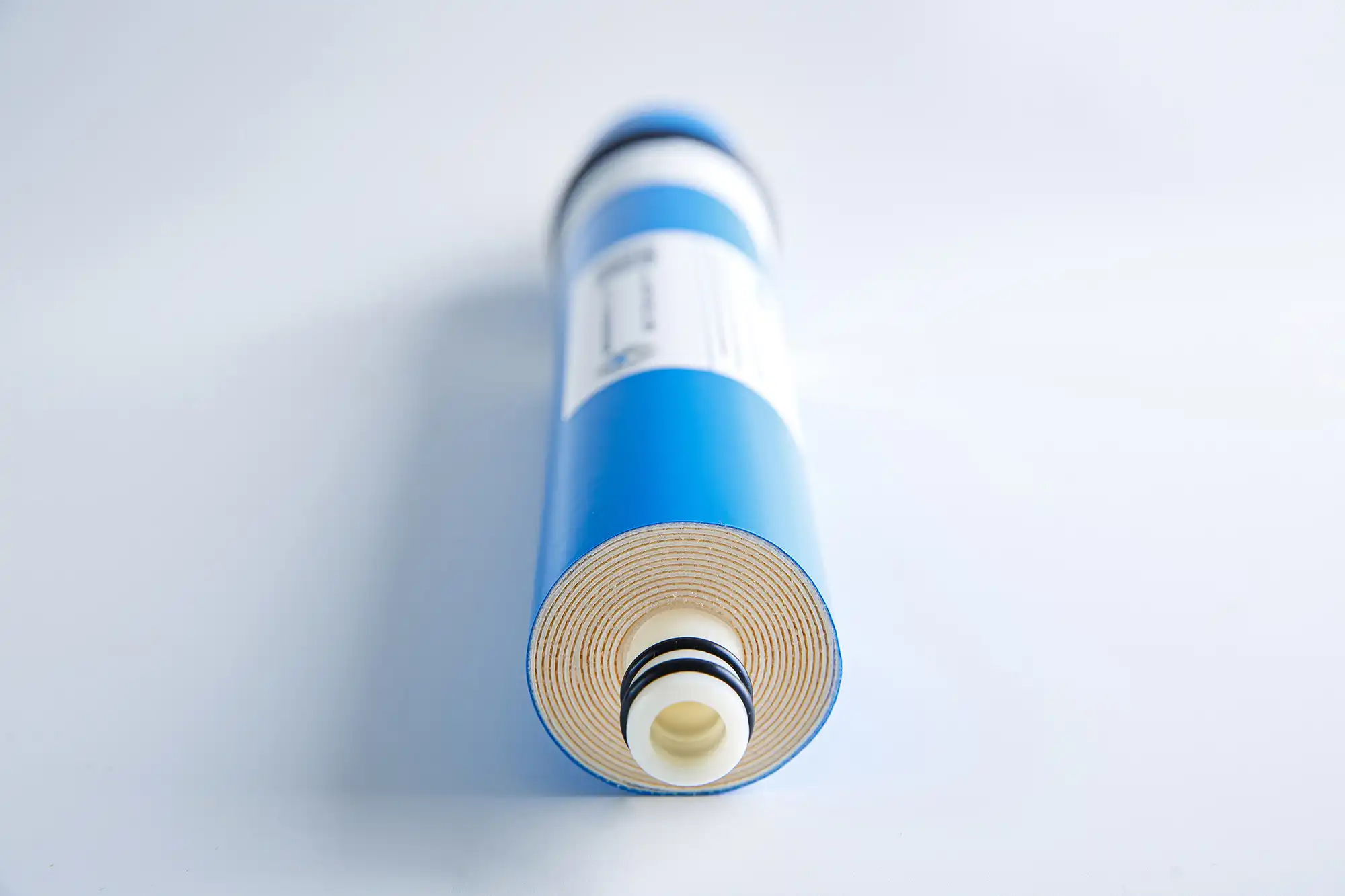

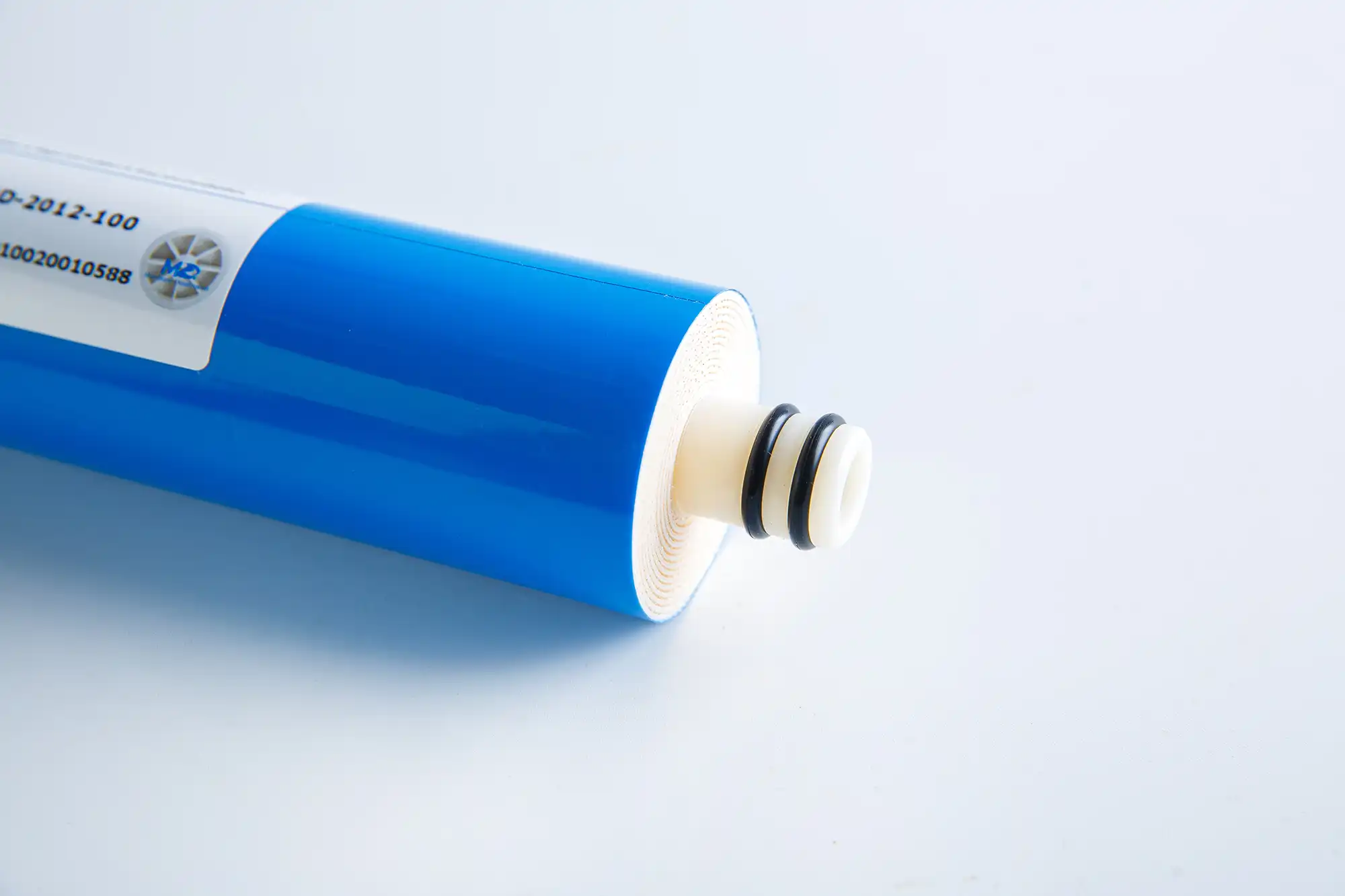

The RO 2012-100 is a high-quality reverse osmosis membrane developed and manufactured by MD. It is designed to provide efficient and reliable water purification for various applications.

Product standards:

ISO9001:2015

Technical Specifications:

Model			RD-2012-100
Salt Rejection(%)			96%
Permeate Flow GPD(m³/d)			100(0.38)
Effective Membrane Area ft2 (m2)			6(0.56)
Operating Pressure psi(Mpa)			60(0.41)
Max Operating Pressure psi(Mpa)			150(1)

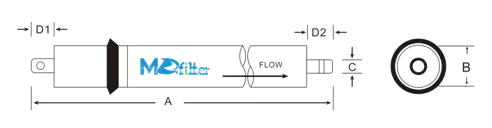

Model	A/mm	B/mm	C/mm	D1/mm	D2/mm
RD-2012-100	298	46	17	21.5	22.5

Product Attributes:

High quality and reliability

Excellent salt rejection rate

Wide pH range compatibility

Low energy consumption

Product Features:

Advanced reverse osmosis technology

High permeate flow

Low pressure operation

Long-lasting performance

Type/Model:

The "2012"  refer to the size and model of the membrane element.  "20" means diameter is 2 inches, and "12" means the length is 12inches.

Production Capacity:

The "100" likely indicates the production capacity of the membrane, typically measured in gallons per day (GPD). In this case, the RD-2012-100 membrane could potentially produce up to 100 gallons of purified water per day under optimal conditions.

Reverse Osmosis (RO) Membrane:

Salt rejection reverse osmosis are a sort of filtration innovation that employments a semi-permeable film to evacuate contaminants from water. They work by applying weight to constrain water through the film, taking off behind debasements such as broken up salts, overwhelming metals, and other contaminants. ROmembranes are exceedingly successful at creating clean, decontaminated water and are commonly utilized in private, commercial, and mechanical applications.

Installation:

RO membranes are typically installed within RO systems alongside other filtration components such as pre-filters, post-filters, and a pressurized storage tank. Proper installation and maintenance are essential for ensuring optimal performance and longevity of the membrane.

Working Principle:

The RO 2012-100 utilizes a semi-permeable membrane to separate impurities and contaminants from water. Pressure is applied to the feed water, forcing it through the membrane while leaving behind the dissolved solids and other impurities. This process helps in achieving pure and clean water output.

Testing Conditions:

Testing pressure: 60 psi (0.41MPa)

Temperature of testing solution: 25℃

Concentration of testing solution (NaCl): 250 ppm

pH of testing solution: 7.5-8

Recovery of single element: 15%

Range of salt rejection: ±2

Operating Limits:

Membrane Type: Polyamide

Max. Operating Temperature: 45℃

Max. Operating Pressure: 150 psi (1MPa)

Max. Input Water Rate: 2.0 GPM (7.6 LPM)

pH Range: 2-11

Max. Input: SDI 5

Free Chlorine Tolerance: < 0.1 ppm

Remark: Take the average value of water production during testing, and the error of water production for a single membrane is within 15%

Applications:

The RD-2012-100 RO membrane is suitable for various applications including:

Drinking water purification

Industrial water treatment

Wastewater treatment

Food and beverage processing

OEM Service:

MD provides OEM services, offering customized solutions to meet specific customer requirements. We have the expertise and capability to design and manufacture RO membranes according to individual needs.

Frequently Asked Questions:

Q: What is the lifespan of the RD-2012-100 RO membrane?
A: The lifespan of the membrane depends on various factors such as feed water quality, operating conditions, and maintenance. With proper care and regular maintenance, the membrane can last for several years.

Q: Can the RD-2012-100 RO membrane remove viruses?
A: Yes, the RD-2012-100 RO membrane is capable of removing most viruses, providing a high level of protection against waterborne pathogens.

Q: Is the membrane compatible with all types of feed water?
A: The RD-2012-100 RO membrane is compatible with a wide range of feed water sources, including tap water, well water, and brackish water.
