RO Membrane 2012-100
Regular price/
Features:
1. Superior Performance
2. Long-Lasting Durability
3. Low Energy Consumption
4. Value for Money
1. Superior Performance
2. Long-Lasting Durability
3. Low Energy Consumption
4. Value for Money
Product Description
Product Overview

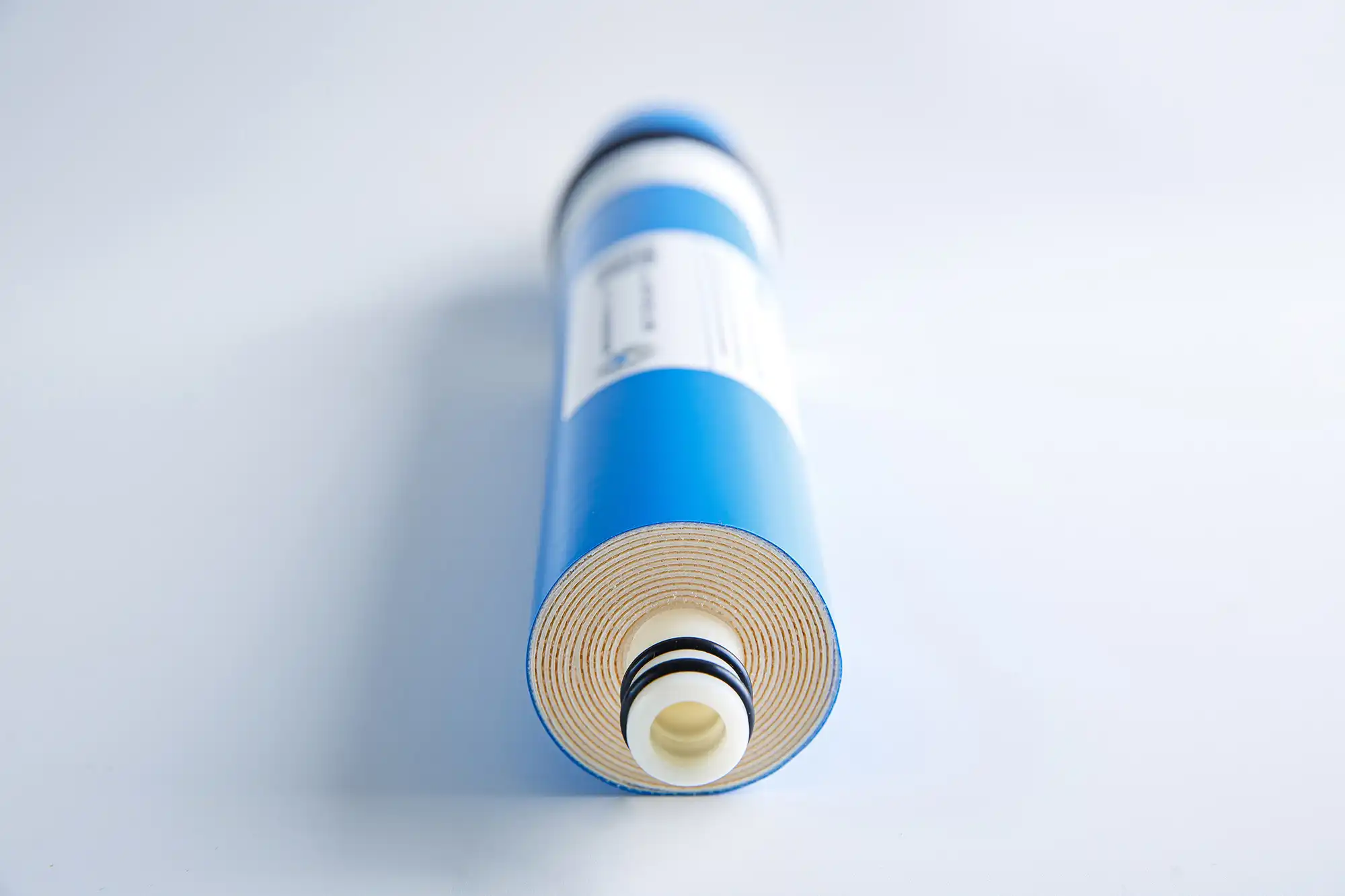

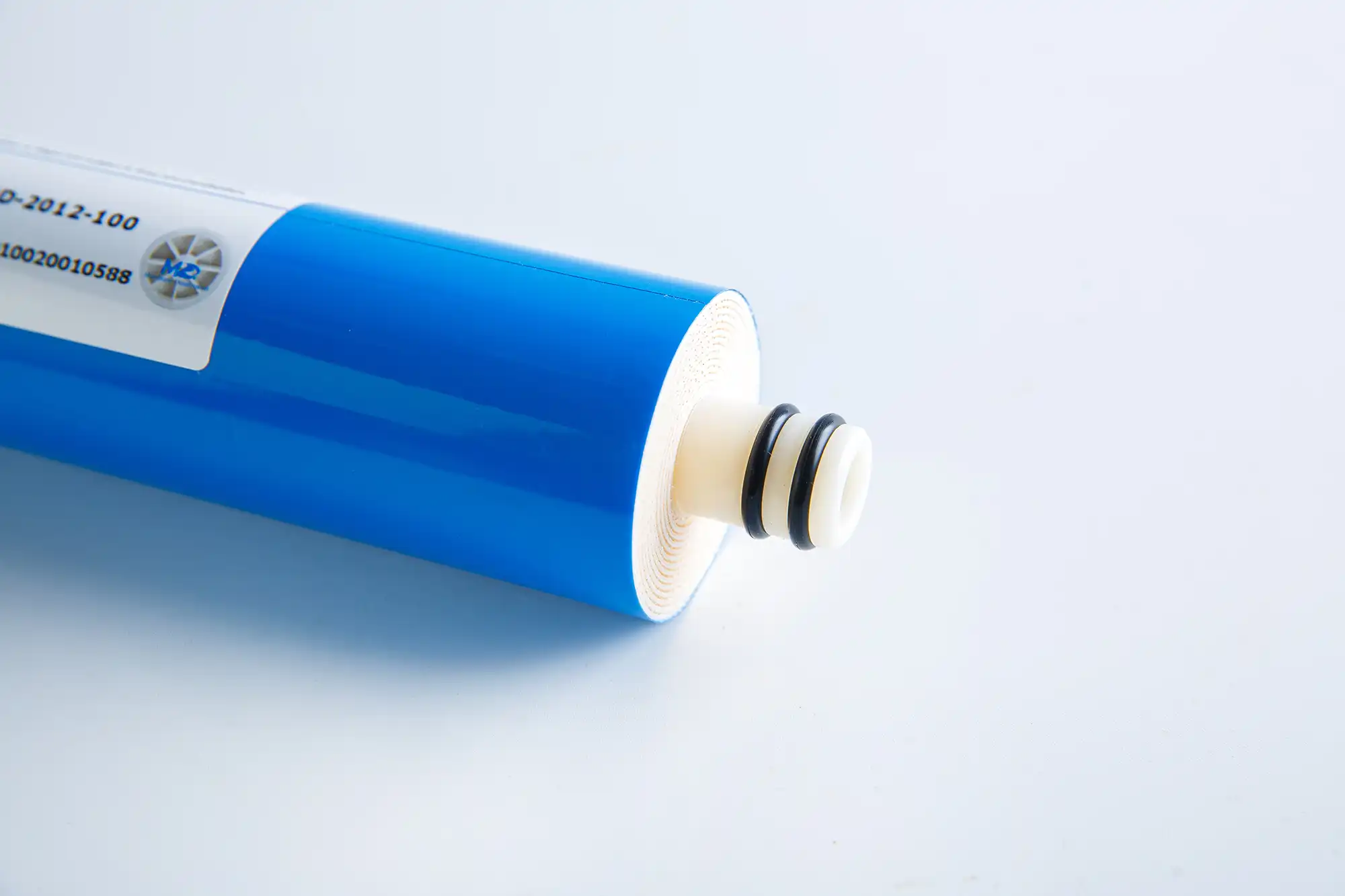

The RO Membrane 2012-100 is a high-performance reverse osmosis membrane designed for water purification applications. It is manufactured using advanced technology to ensure excellent product quality and performance.
Structure
The ULP 2012-100 consists of a thin polyamide layer, which is selectively permeable to water while rejecting dissolved impurities, and a highly porous support layer. This dual-layer structure ensures efficient water filtration and high rejection rates for contaminants.
Product Standards
ISO 9001 certified
Technical Specifications
| Model | RD-2012-100 |
| Salt Rejection(%) | 96% |
| 96%Permeate Flow GPD(m³/d) | 100(0.38) |
| Effective Membrane Area ft2 (m2) | 6(0.56) |
| Operating Pressure psi(Mpa) | 60(0.41) |
| Max Operating Pressure psi(Mpa) | 150(1) |

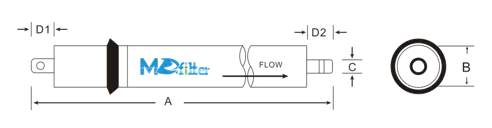

| Model | A/mm | B/mm | C/mm | D1/mm | D2/mm |
| RD-2012-100 | 298 | 46 | 17 | 21.5 | 22.5 |
Product Features
High rejection rate for a wide range of contaminants
Reliable and consistent performance
Long service life
Low energy consumption
Easy to install and maintain
Working Principle
The ULP 2012-100 works based on the principle of reverse osmosis. It utilizes pressure to force water molecules through the semi-permeable membrane while leaving behind dissolved solids and other impurities. This process effectively removes contaminants from the feed water, providing purified water.
Model
The "2012" designation refers to the size and shape of the membrane element. 2012 membranes are standard-sized elements used in many residential and commercial RO systems. The "100" indicates the production capacity of the membrane, typically measured in gallons per day (GPD). In this case, the 2012-100 membrane is designed to produce up to 100 gallons of purified water per day under optimal conditions.
RO Membrane
Reverse osmosis osmosis are a sort of filtration innovation that utilizes a semi-permeable film to expel contaminants from water. By applying weight, water is constrained through the layer, clearing out behind pollutions such as broken down salts, overwhelming metals, and other contaminants. RO films are profoundly viable at creating clean, decontaminated water and are commonly utilized in private, commercial, and mechanical applications.
Applications
The Membrane TFC 100 GPD is suitable for various applications, including:
Residential water filtration systems
Food and beverage processing
Installation
RO membranes like the 2012-100 are typically installed within RO systems alongside other filtration components such as pre-filters, post-filters, and a pressurized storage tank. Proper installation and maintenance are crucial for ensuring optimal performance and longevity of the membrane.
OEM Services
MD is a professional manufacturer and supplier of Membrane TFC 100 GPD. We offer both standard and customized membranes to meet specific customer requirements. Our membranes are certified and supported by comprehensive testing reports. We provide OEM services, ensuring fast delivery, secure packaging, and testing support.
If you are interested in our products or have any inquiries, please contact us at info@md-desalination.com.
Frequently Asked Questions
Can the residential RO membrane be used in high-pressure systems?
Yes, the membrane can operate at a maximum pressure of 600 psi.
What is the lifespan of the membrane?
The membrane has a long service life and can last for several years with proper maintenance.
Can the membrane remove bacteria and viruses?
Yes, the residential RO membrane can effectively remove bacteria, viruses, and other microorganisms.
About MD
MD is a reputable manufacturer and supplier of high-quality residential RO membrane. We cater to buyers and global distributors who require reliable and efficient water purification solutions. Our membranes are tested and certified, ensuring performance and quality. We offer OEM services and deliver products with fast turnaround times, secure packaging, and testing support.
