The RO Membrane HR-1812-50 is a high-quality reverse osmosis membrane that is designed for efficient and reliable water purification. It is made up of several membranes, including the thin film composite membrane, a feed channel spacer, and a permeate tube. These membranes play a crucial role in the filtration process, ensuring the removal of impurities and providing clean and safe drinking water.
| Product Standard | Technical Specifications |
| Material | Thin film composite |
| Membrane Type | Reverse osmosis |
| Membrane Size | 12" in length, 1.8" in diameter |
| Membrane Area | 50 square feet |
| Operating Pressure | up to 150 psi |
| Salt Rejection Rate | 95% |
| Model | HR-1812-50 | ||||
| Salt Rejection(%) | 98% | ||||
| Permeate Flow GPD(m³/d) | 50(0.19) | ||||
| Effective Membrane Area ft2 (m2) | 4.4(0.4) | ||||
| Operating Pressure psi(Mpa) | 60(0.41) | ||||
| Max Operating Pressure psi(Mpa) | 150(1) |

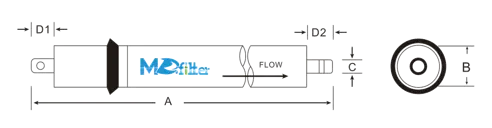

| Model | A/mm | B/mm | C/mm | D1/mm | D2/mm |
| HR-1812-50 | 298 | 44.5 | 17 | 21.5 | 22.5 |
The TFC 1812-50 offers the following attributes:
High filtration efficiency
Excellent salt rejection rate
Long-lasting and durable
Compatible with standard RO systems
Easy to install and maintain
The "HR" is abbreviation of High Salt Rejection, this is another type distinguished with RD.
Model:
"1812" typically refers to the size and shape of the membrane element. 1812 membranes are standard-sized elements used in many residential and light commercial RO systems.
Capacity:
The "50" indicates the production capacity of the membrane, usually measured in gallons per day (GPD). In this case, the HR-1812-50 membrane is designed to produce 50 gallons of purified water per day under normal conditions. However, actual performance may vary depending on factors such as water temperature, pressure, and quality.
RO Membrane:
Reverse osmosis membranes are a sort of filtration innovation that employments a semi-permeable layer to expel contaminants from water. They work by applying weight to drive water through the layer, clearing out behind debasements such as broken down salts, overwhelming metals, and other contaminants. RO membranes are exceedingly compelling at creating clean, filtered water and are commonly utilized in private applications.
1. Advanced Thin Film Composite Technology: The HR-1812-50 membrane utilizes advanced thin film composite technology, ensuring high-performance water filtration.
2. High Salt Rejection: With a salt rejection rate of 98%, the membrane effectively removes salts, minerals, and other impurities from the water.
3. Reliable and Durable: The membrane is designed to provide long-lasting performance, ensuring consistent and reliable water filtration.
The HR-1812-50 membrane operates on the principle of reverse osmosis. It uses pressure to force water through the semi-permeable membrane, allowing the passage of water molecules while blocking the passage of impurities. This process effectively removes contaminants, such as salts, bacteria, and viruses, from the water, resulting in clean and safe drinking water.
The HR-1812-50 membrane can be used in various industries and settings, including:
Residential water filtration systems
Food and beverage production
MD is a professional manufacturer and supplier of TFC 1812-50. We offer various standard and customized membranes to meet specific customer requirements. Our membranes are certified and undergo comprehensive testing to ensure they meet the highest quality standards. We also provide OEM services, allowing customers to brand the membranes with their own logo or design. Our fast delivery, secure packaging, and support for testing make us a reliable partner for all your membrane needs.
Q: Can the HR-1812-50 membrane be used in high-pressure systems?
A: Yes, the membrane can operate at pressures of up to 300 psi, making it suitable for high-pressure applications.
Q: How often should the HR-1812-50 membrane be replaced?
A: The frequency of membrane replacement depends on several factors, such as water quality and usage. However, on average, the membrane should be replaced every 2-3 years for optimal performance.
Q: Can the HR-1812-50 membrane remove fluoride from water?
A: Yes, the HR-1812-50 membrane has the ability to remove fluoride and other contaminants from water, providing clean and safe water for consumption.
