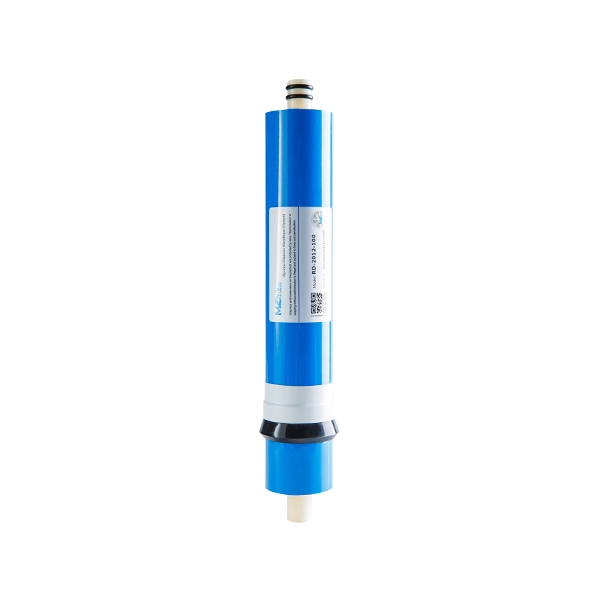

ULP 2012-100

In the realm of cutting-edge desalination technology, MD proudly presents the ULP 2012-100, a groundbreaking solution that redefines the standards of efficiency and sustainability. This product introduction aims to provide professionals, buyers, and global dealers with comprehensive insights into the product.

Basic Product Information

The ULP 2012-100 is the pinnacle of desalination technology thanks to a collection of cutting-edge features that push its performance to previously unheard-of heights. Designed with an emphasis on ideal effectiveness, this framework is portrayed by a vigorous construction that ensures both solidness and life span. Its design demonstrates a dedication to excellence by incorporating cutting-edge parts that meet or exceed industry standards.



At the heart of the product is a sophisticated architecture that maximizes the efficiency of the desalination process. The framework consistently incorporates trend setting innovations, guaranteeing a smooth and dependable activity. Its capacity to fulfill the steadily developing needs for new water is a demonstration of its ability in tending to water shortage challenges.



Moreover, the product is not merely a technological marvel; it is a sustainable solution. With a focus on environmental consciousness, this system minimizes its ecological footprint while delivering exceptional desalination performance. As the forefront player in the industry, the product stands as a symbol of innovation, reliability, and commitment to providing sustainable water solutions for a growing world.

Product Standards :

Complies with international desalination standar

Model			RD-2012-100
Salt Rejection(%)			96%
Permeate Flow GPD(m³/d)			100(0.38)
Effective Membrane Area ft2 (m2)			6(0.56)
Operating Pressure psi(Mpa)			60(0.41)
Max Operating Pressure psi(Mpa)			150(1)

​

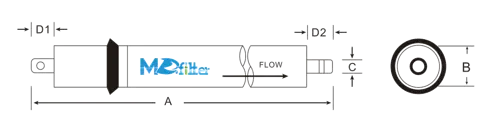

Model	A/mm	B/mm	C/mm	D1/mm	D2/mm
RD-2012-100	298	46	17	21.5	22.5

Product Attributes:

• High desalination efficiency

• Low energy consumption

• Compact design for easy integration

Product Functions:

Designed to cater to a myriad of industrial and commercial needs, the product excels at converting seawater into high-quality fresh water. Because it can be used for so many different things, it is a valuable asset in many different industries.Whether tending to the water requests of modern cycles or supporting business tries, this framework's high level abilities guarantee solid and effective desalination. The product stands as a flexible arrangement, proficient at meeting different necessities and adding to the practical administration of water assets in various applications.

Working Principles:

The product utilizes state of the art invert assimilation innovation and utilizations super low strain to assist with isolating salt and different contaminations from water, guaranteeing a solid and compelling desalination process.

Testing Conditions:

Testing pressure: 60 psi (0.41MPa)

Temperature of testing solution: 25℃

Concentration of testing solution (NaCl): 250 ppm

pH of testing solution: 7.5-8

Recovery of single element: 15%

Range of salt rejection: ±2

Operating Limits:

Membrane Type: Polyamide

Max. Operating Temperature: 45℃

Max. Operating Pressure: 150 psi (1MPa)

Max. Input Water Rate: 2.0 GPM (7.6 LPM)

pH Range: 2-11

Max. Input: SDI 5

Free Chlorine Tolerance: < 0.1 ppm

Features and Advantages:

• Advanced reverse osmosis membrane technology

• Energy-efficient operation

• Compact footprint for flexible installation

Application Areas:

This imaginative desalination framework finds its application in businesses like farming, producing, and city water supply.Its versatility makes it an ideal choice for addressing diverse water treatment challenges.

OEM Service:

MD takes pride in offering customizable solutions to meet specific client requirements. Our OEM service ensures that the product can be tailored to fit unique project needs, providing a personalized touch to water desalination projects.

Introduction to MD: Your Trusted ULP 2012-100 Manufacturer

MD stands as a reputable product manufacturer and supplier, committed to excellence in desalination technology. MD has set up a good foundation for itself as a market chief by offering many norms and customization choices.

Certifications and Test Report:

It comes with certifications meeting rigorous industry standards. Our detailed test report ensures the reliability and performance of the system.

OEM Support and Fast Delivery:

MD is dedicated to providing swift and efficient services. Our support for OEM projects ensures that clients receive tailor-made solutions promptly.

Tight Packaging and Testing Support:

It is delivered with utmost care, ensuring its integrity upon arrival. Additionally, MD provides testing support and encourages clients to utilize their own climate chambers for optimal performance.

Contact Us:

For inquiries or to discuss your specific requirements, please contact us at info@md-desalination.com.

In conclusion, the ULP 2012-100 by MD represents a pinnacle in desalination technology, offering a sustainable and efficient solution for global water treatment challenges. Trust MD for innovation that truly makes a difference.
