RO Membrane 3013-600 is a high-quality reverse osmosis membrane manufactured by MD, a professional manufacturer and supplier of RO membranes. With a focus on providing standard and customized solutions, MD offers reliable products with complete certification and excellent OEM services. Here's a detailed introduction to the 600 GPD RO membrane:

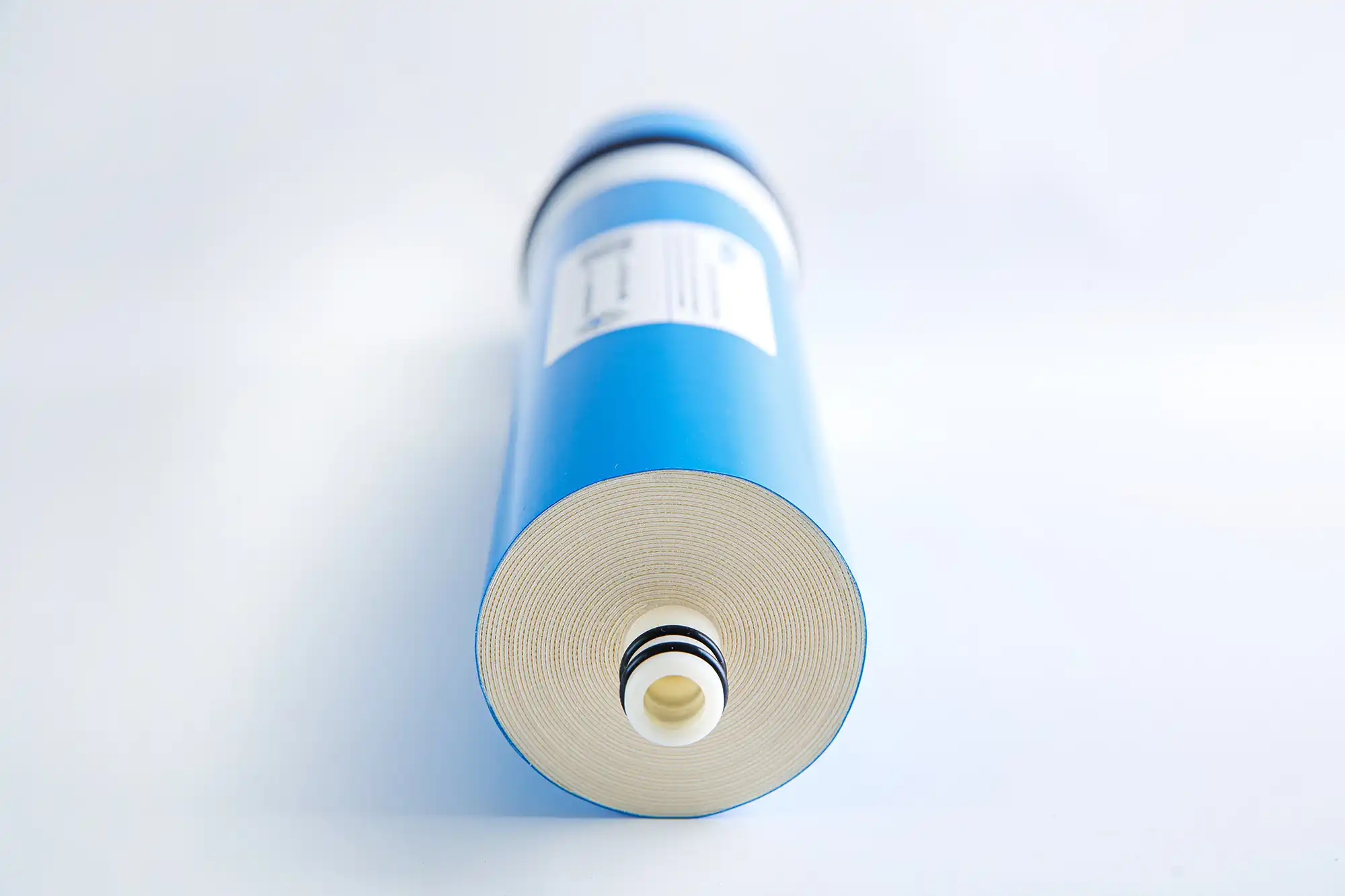

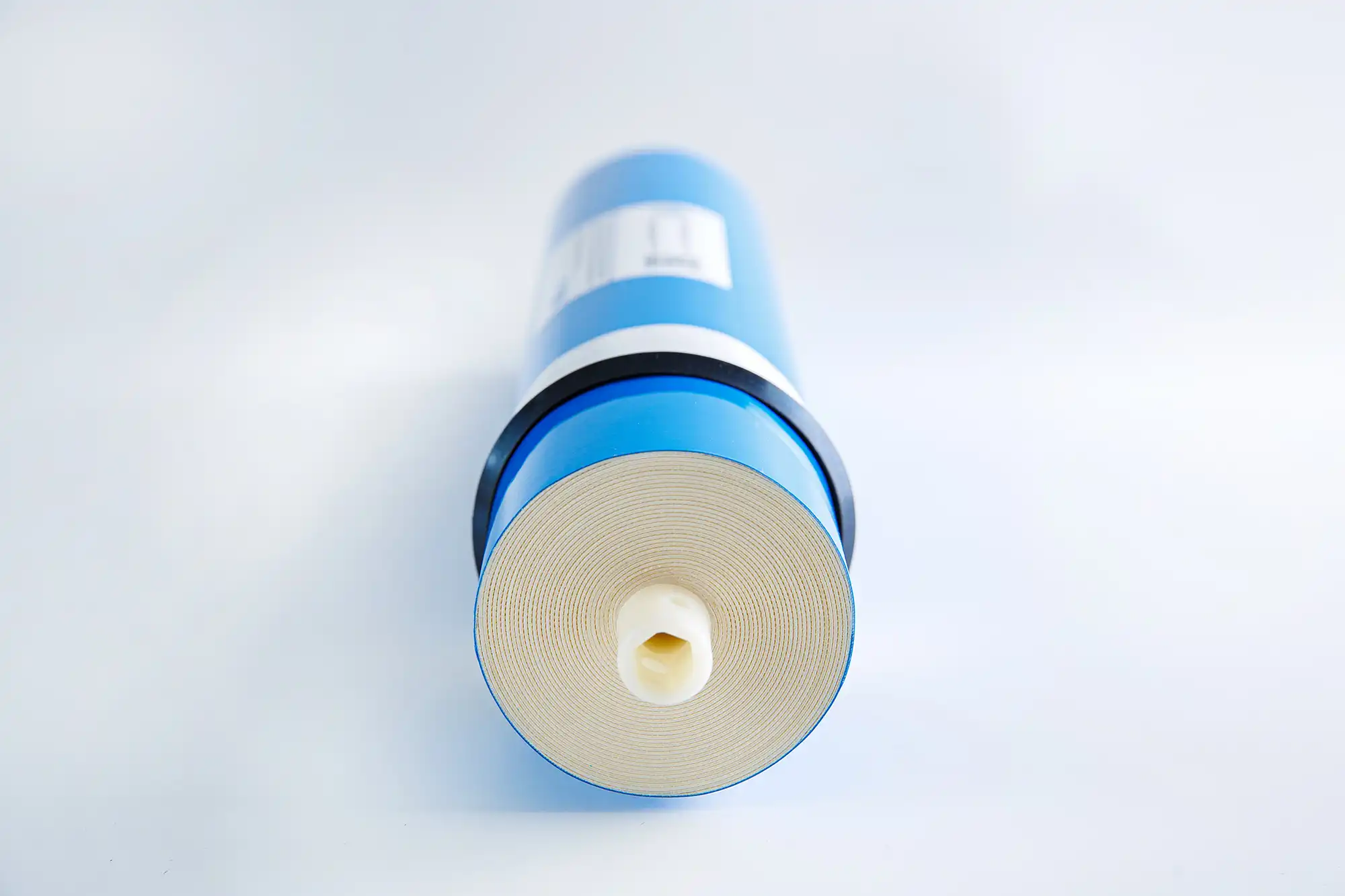

600 GPD RO membrane is designed for reverse osmosis water treatment systems. It is made of high-quality materials to ensure long-lasting performance and efficient water purification. The membrane has a compact size of 3013-600, making it suitable for various applications.
The 3013 RO Membrane adheres to strict industry standards and undergoes extensive testing to ensure its reliability and performance. It meets all the necessary certifications required for water treatment systems.
Specifications of the 3013 RO Membrane:
| Model | Size | Flow Rate | Salt Rejection |
| RO Membrane 3013-600 | 3013 | 600 GPD (gallons per day) | 95% |
| Model | RD-3012-600 | ||||
| Salt Rejection(%) | 96% | ||||
| Permeate Flow GPD(m³/d) | 400(1.52) | ||||
| Effective Membrane Area ft2 (m2) | 15.4(1.42) | ||||
| Operating Pressure psi(Mpa) | 100(0.69) | ||||
| Max Operating Pressure psi(Mpa) | 300(2.07) |

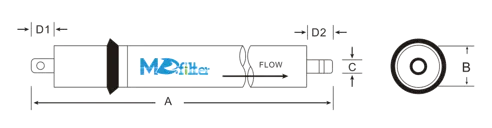

| Model | A/mm | B/mm | C/mm | D1/mm | D2/mm |
| 3013-600 | 333 | 69 | 17 | 17 | 22 |
Product Features
The reverse osmosis brackish water treatment offers the following features:
High-quality and durable
Efficient filtration with a high salt rejection rate
Compact size for easy integration into water treatment systems
Long lifespan with minimal maintenance requirements
The reverse osmosis brackish water treatment uses the process of reverse osmosis to filter out impurities and contaminants from water. It works by applying pressure to a solution, forcing water molecules through the semi-permeable membrane while leaving behind dissolved salts and other impurities.
Model
The "3013" designation refers to the size and shape of the membrane element, indicating that it belongs to a specific series or standard dimension. The "600" indicates the production capacity of the membrane, typically measured in gallons per day (GPD). In this case, the 3013-600 membrane is designed to produce up to 600 gallons of purified water per day under causual conditions.
Testing Conditions:
Testing pressure: 100 psi (0.69MPa)
Temperature of testing solution: 25℃
Concentration of testing solution (NaCl): 500 ppm
pH of testing solution: 7.5-8
Recovery of single element: 15%
Range of salt rejection: ±2
Operating Limits:
Membrane Type: Polyamide
Max. Operating Temperature: 45℃
Max. Operating Pressure: 300 psi (2.07 Mpa)
Max. Input Water Rate: 2.0 GPM (7.6 LPM)
pH Range: 2-11
Max. Input: SDI 5
Free Chlorine Tolerance: < 0.1 ppm
The reverse osmosis brackish water treatment is suitable for various water treatment applications, including:
Commercial and industrial water treatment
Water filtration for food and beverage industry
The 3013-600 membrane is suitable for various applications, including residential drinking water systems, commercial water treatment systems.
RO membranes like the 3013-600 are typically installed within RO systems alongside other filtration components such as pre-filters, post-filters, and a pressurized storage tank. Proper installation and regular maintenance are essential for ensuring optimal performance and longevity of the membrane.
MD offers comprehensive OEM services for the RO Membrane 3013-600, allowing customers to customize the product according to their specific requirements. This includes branding, packaging, and product specifications.
1. Can the RO Membrane 3013-600 be used for seawater desalination? Answer: No, this membrane is not suitable for seawater desalination; it is designed for standard water treatment systems.
2. What is the expected lifespan of the RO Membrane 3013-600? Answer: With proper maintenance, the membrane can last up to 2-3 years.
3. Can MD provide technical support and guidance for installation? Answer: Yes, MD offers technical support and guidance for the installation and operation of the RO Membrane 3013-600.
MD is a professional manufacturer and supplier of RO membranes, specializing in the production of high-quality water treatment membranes. With a commitment to innovation and customer satisfaction, MD offers a wide range of standard and customized solutions for various applications. The company's products undergo rigorous testing and certification to ensure their performance and reliability. MD supports OEM services, fast delivery, and provides complete testing reports. For inquiries or to request a quote for your custom water treatment needs, please contact us at info@md-desalination.com.
