The Reverse Osmosis 200 GPD is a highly efficient and reliable reverse osmosis membrane designed for water purification purposes. It is manufactured by MD, a leading manufacturer and supplier of RO membranes, offering both standard and custom-made solutions.
- Meets the industry standards for water purification - Rigorous quality control processes ensure superior performance and durability
| Model | RD-2812-200 | ||||
| Salt Rejection(%) | 96% | ||||
| Permeate Flow GPD(m³/d) | 200(0.76) | ||||
| Effective Membrane Area ft2 (m2) | 11(0.1) | ||||
| Operating Pressure psi(Mpa) | 100(0.69) | ||||
| Max Operating Pressure psi(Mpa) | 300(2.07) |

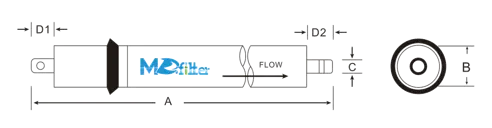

| Model | A/mm | B/mm | C/mm | D1/mm | D2/mm |
| RD-2812-200 | 298 | 68 | 17 | 21.5 | 22.5 |
- Membrane Type: Reverse Osmosis - Model Number: 2812-200 - Membrane Material: Thin Film Composite (TFC) - Membrane Area: 11 square feet - Operating Pressure: 200-400 psi - Maximum Operating Temperature: 113°F - pH Range: 2-11 - Chlorine Tolerance:<0.1 ppm - Flow Rate: 200 gallons per day
- Tall dismissal rate for contaminants, guaranteeing unadulterated and secure water - Long life expectancy, conveying reliable filtration execution over time - Decreased fouling and scaling, minimizing upkeep necessities - Fabulous salt dismissal, reasonable for desalination ventures - TFC development gives upgraded strength and resistance to fouling - Dependable execution in a wide run of working conditions
The Reverse Osmosis 200 GPD is outlined to evacuate debasements, counting broken down salts, microorganisms, and natural compounds, from water through the handle of invert osmosis. It employments a semi-permeable layer that permits water particles to pass through whereas dismissing bigger particles and particles.
The RO Membrane 2812-200 operates on the principle of reverse osmosis. When water is subjected to pressure against the membrane surface, the solvent (water) is forced through the membrane, while the dissolved contaminants are left behind. The purified water is collected, while the concentrated impurities are expelled as waste.
Testing Conditions:
Testing pressure: 100 psi (0.69MPa)
Temperature of testing solution: 25℃
Concentration of testing solution (NaCl): 500 ppm
pH of testing solution: 7.5-8
Recovery of single element: 15%
Range of salt rejection: ±2
Operating Limits:
Membrane Type: Polyamide
Max. Operating Temperature: 45℃
Max. Operating Pressure: 300 psi (2.07 Mpa)
Max. Input Water Rate: 2.0 GPM (7.6 LPM)
pH Range: 2-11
Max. Input: SDI 5
Free Chlorine Tolerance: < 0.1 ppm
- High rejection rate for various contaminants - Long-lasting performance and durability - Minimal fouling and scaling - Suitable for desalination applications - Versatile operation in different conditions - Easy installation and maintenance
- Residential and commercial water filtration systems - Wastewater treatment plants - Drinking water purification projects - Desalination plants - Food and beverage industry - Pharmaceutical industry
MD provides OEM services, offering custom-made 200 GPD membrane products with branding options. With our extensive experience and expertise in membrane manufacturing, we can meet specific requirements and deliver high-quality membranes tailored to our clients' needs.
Q: Can the 200 GPD membrane remove bacteria and viruses? A: Yes, the 200 GPD membrane has a high rejection rate for microorganisms, including bacteria and viruses. Q: What is the lifespan of the 200 GPD membrane? A: The lifespan of the RO Membrane 2812-200 can vary depending on the operating conditions and maintenance practices, but typically it can last several years before needing replacement. Q: Can I use the RO Membrane 2812-200 for seawater desalination? A: Yes, the RO Membrane 2812-200 is suitable for desalination projects, including seawater desalination. For more information or to purchase the RO Membrane 2812-200 or other products, please contact MD at info@md-desalination.com.
MD is a leading manufacturer and supplier of RO membranes, providing a wide range of standard and customized solutions for water purification applications. Our membranes are meticulously manufactured and tested to ensure optimum performance and quality. We offer comprehensive certification and testing reports, guaranteeing the reliability and compliance of our products with industry standards. With our efficient manufacturing processes, we ensure quick delivery of orders without compromising on quality. We specialize in OEM services, offering customized RO membranes with various branding options. Our team of experts is dedicated to assisting clients in finding the most suitable solutions for their specific requirements. Whether you are a buyer or a global distributor looking for high-quality RO Membrane 2812-200 or other membranes, MD is your trusted partner. Contact us today at info@md-desalination.com for more information or to place an order.
