RO 2812-200

Product Details

The RO 2812-200 is a high-performance reverse osmosis system that is designed to provide clean and pure drinking water. It is equipped with advanced technology and features to ensure efficient and effective water filtration.

Product Standards

- Conforms to RO 2812-200 standard

- Meets all safety and quality requirements

Technical Specifications

Model	RO 2812-200
Membrane Material	Thin Film Composite
Membrane Size	2812
Production Capacity	200 gallons per day



Model			RD-2812-200
Salt Rejection(%)			96%
Permeate Flow GPD(m³/d)			200(0.76)
Effective Membrane Area ft2 (m2)			11(0.1)
Operating Pressure psi(Mpa)			100(0.69)
Max Operating Pressure psi(Mpa)			300(2.07)

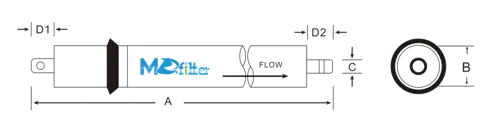

Model	A/mm	B/mm	C/mm	D1/mm	D2/mm
2812-200	298	68	17	21.5	22.5

Product Attributes

- High-quality filtration

- Long-lasting performance

- Easy installation and maintenance

Product Functions

200 GPD RO membrane effectively removes impurities, contaminants, and odors from the water through its advanced filtration process. It can eliminate harmful substances, such as chlorine, heavy metals, bacteria, and viruses, providing clean and safe drinking water.

Working Principle

200 GPD RO membrane uses a semi-permeable membrane to separate impurities from the water. Water is forced through the membrane, leaving behind any impurities, while purified water is collected for use.

Model

The "2812" designation refers to the size and shape of the membrane element, indicating that it belongs to a specific series or standard dimension. The "200" indicates the production capacity of the membrane, typically measured in gallons per day (GPD). In this case, the 2812-200 membrane is designed to produce up to 200 gallons of purified water per day under optimal conditions.

RO Membrane

Reverse osmosis membranes are a sort of filtration innovation that employments a semi-permeable layer to expel contaminants from water. By applying weight, water is constrained through the layer, clearing out behind pollutions such as broken up salts, overwhelming metals, and other contaminants. RO membranes are exceedingly productive at creating clean, filtered water and are broadly utilized in private, commercial, and mechanical applications.

Testing Conditions:

Testing pressure: 100 psi (0.69MPa)

Temperature of testing solution: 25℃

Concentration of testing solution (NaCl): 500 ppm

pH of testing solution: 7.5-8

Recovery of single element: 15%

Range of salt rejection: ±2

Operating Limits:

Membrane Type: Polyamide

Max. Operating Temperature: 45℃

Max. Operating Pressure: 300 psi (2.07 Mpa)

Max. Input Water Rate: 2.0 GPM (7.6 LPM)

pH Range: 2-11

Max. Input: SDI 5

Free Chlorine Tolerance: < 0.1 ppm

Features and Advantages

- High filtration efficiency

- Low energy consumption

- Compact and space-saving design

Applications

commercial reverse osmosis membrane is suitable for various applications, including residential use, commercial establishments that require clean and pure water.

When considering purchasing a 2812-200 RO membrane or any other water filtration product, it's important to verify the product's specifications, ensure compatibility with your existing system, and purchase from a reputable supplier to ensure quality and performance. Additionally, consulting with the manufacturer or supplier can provide specific information about the membrane's capabilities and suitability for your application.

Installation

RO membranes like the 2812-200 are typically installed within RO systems alongside other filtration components such as pre-filters, post-filters, and a pressurized storage tank. Proper installation and regular maintenance are essential for ensuring optimal performance and longevity of the membrane.

OEM Services

We offer OEM services for RO 200 GPD, allowing customers to customize the product according to their specific requirements. We ensure high-quality manufacturing and timely delivery.

Frequently Asked Questions

Q: How often should the membrane be replaced?

A: The membrane should be replaced approximately every 2-3 years, depending on the water quality and usage.

Q: Is the installation complicated?

A: No, the installation process is straightforward and can be done by following the provided instructions.
