RO 3012

1. Product Overview

3012 RO membrane is a top-of-the-line reverse osmosis system that offers advanced water purification capabilities. With its superior performance and reliability, it provides clean and safe drinking water for both residential and commercial applications.

2. Product Specifications

Model			RD-3012-300
Salt Rejection(%)			96%
Permeate Flow GPD(m³/d)			300(1.14)
Effective Membrane Area ft2 (m2)			13.2(1.22)
Operating Pressure psi(Mpa)			100(0.69)
Max Operating Pressure psi(Mpa)			300(2.07)

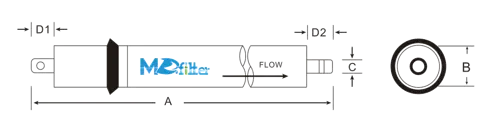

Model	A/mm	B/mm	C/mm	D1/mm	D2/mm
RD-3012-300	298	73	17	21.5	22.5

3. Product Features

Highly efficient reverse osmosis membrane

Removes impurities and contaminants from water

Compact and lightweight design

Easy installation and maintenance

Sturdy and durable construction

Low energy consumption

4. Working Principle

300 GPD operates on the principle of reverse osmosis, which involves the use of a semi-permeable membrane to separate contaminants from water. The pressure applied forces the water molecules to pass through the membrane, while blocking the larger contaminants. This process ensures the production of clean and purified water.

Testing Conditions:

Testing pressure: 100 psi (0.69MPa)

Temperature of testing solution: 25℃

Concentration of testing solution (NaCl): 500 ppm

pH of testing solution: 7.5-8

Recovery of single element: 15%

Range of salt rejection: ±2

Operating Limits:

Membrane Type: Polyamide

Max. Operating Temperature: 45℃

Max. Operating Pressure: 300 psi (2.07 Mpa)

Max. Input Water Rate: 2.0 GPM (7.6 LPM)

pH Range: 2-11

Max. Input: SDI 5

Free Chlorine Tolerance: < 0.1 ppm

5. Advantages and Benefits

TFC 300 reverse osmosis offers several advantages and benefits:

Gives high-quality and secure drinking water

Improves taste and odor of water

Reduces the nearness of overwhelming metals and hurtful chemicals

Enhances the life expectancy of family machines by anticipating scale formation

Cost-effective compared to bottled water

Clean and secure water: TFC 300 reverse osmosis layer guarantees the expulsion of contaminants, giving water that meets quality standards.

Versatile: Appropriate for a wide extend of applications, from private to mechanical settings.

6. Applications

The RO 3012 is suitable for a wide range of applications, including:

Private buildings

Office complexes

Restaurants and cafes

Hotels and resorts

Residential: Perfect for domestic drinking water frameworks, giving clean and secure drinking water for families.

Commercial: Appropriate for little to medium-sized businesses, eateries, cafes, and workplaces requiring high-quality water.

The RO 3012 invert osmosis film is a high-quality filtration arrangement appropriate for private, commercial, and mechanical applications.

With its tough development, standard estimate, and viable filtration execution, it gives clean and secure water for different needs.

7. OEM Services

MD is a professional manufacturer and supplier of RO 3012 systems. We offer OEM services, providing various standard and customized options according to your specific requirements. Our products are certified and undergo rigorous testing to ensure their quality and performance. We take pride in quick delivery, secure packaging, and responsive customer support. For inquiries regarding small-scale climate chambers, please contact us at info@md-desalination.com.

8. FAQ (Frequently Asked Questions)

Q1: Can the RO 3012 remove fluoride from water?

A1: Yes, the RO 3012 is capable of removing fluoride along with other contaminants.

Q2: How often should I replace the membrane?

A2: The membrane typically lasts for 2-3 years, depending on the water quality and usage. Regular maintenance is recommended to ensure optimal performance.

Q3: Is the RO 3012 energy-efficient?

A3: Yes, the RO 3012 has a low energy consumption due to its advanced filtration technology.

Q4: Can I connect the RO 3012 to my refrigerator for ice and chilled water?

A4: Yes, 3012 RO membrane can be easily connected to your refrigerator's water supply to provide purified water for ice and chilled water dispensers.

9. About MD

MD is a leading manufacturer and supplier of RO 3012 systems. With a strong focus on customer satisfaction, we provide high-quality products that meet international standards. Our comprehensive range of standard and customized options caters to the diverse needs of buyers and global distributors. We offer reliable and efficient solutions backed by extensive testing and certification. Contact us today for all your reverse osmosis requirements.
