The SW 4040 Sea Water RO Membrane Element is a high-quality product designed to remove impurities and salt from sea water, making it suitable for various applications. This product is manufactured and supplied by MD, a leading manufacturer and supplier of SW 4040 Sea Water RO Membrane Elements.
The SW 4040 membrane element is specifically designed for desalination of seawater, providing a reliable solution for producing potable water from ocean sources.
The SW 4040 Sea Water RO Membrane Element is constructed using advanced technology and high-quality materials. It is designed to provide efficient and reliable performance in desalination systems. This membrane element has a durable structure and is capable of withstanding high operating pressures.
ISO 9001:2015 certified
Meets ANSI/NSF standards
| Model | SW4040-90XLE | ||||
| Salt Rejection(%) | 99.60% | ||||
| Permeate Flow GPD(m³/d) | 1830(6.9) | ||||
| Effective Membrane Area ft2 (m2) | 90(8.4) | ||||
| Operating Pressure psi(Mpa) | 800(5.52) | ||||
| Max Operating Pressure psi(Mpa) | 1200(8.28) |

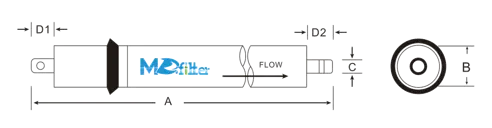

| Model | A/mm | B/mm | C/mm | D/mm |
| SW4040-90XLE | 963 | 99 | 19 | 26.7 |
Product Attributes
High salt rejection
Excellent permeate flow
Long membrane life
Low energy consumption
Superior chemical resistance
Removes impurities and salt from sea water
Produces high-quality drinking water
Suitable for various applications
Robust and durable construction
Easy installation and maintenance
High Salt Rejection: The SW 4040 membrane element offers exceptional salt rejection rates, effectively removing dissolved salts and minerals from seawater.
Durable Construction: Built with advanced materials, the membrane element is resistant to fouling, scaling, and chemical degradation, ensuring long-lasting performance in harsh seawater environments.
High Flux: The membrane design allows for high water flux rates, maximizing desalination efficiency while minimizing energy consumption.
Reliable Performance: The SW 4040 membrane element offers consistent and reliable desalination performance, ensuring high-quality potable water production.
Energy Efficiency: With its high salt rejection rates and optimized design, the membrane element helps minimize energy consumption and operational costs.
Environmental Sustainability: Contributes to sustainable water management practices by utilizing seawater as a renewable resource and reducing reliance on freshwater reserves.
Cost-Effectiveness: Offers a cost-effective solution for seawater desalination, providing a reliable and efficient means of producing potable water from ocean sources.
The SW 4040 Sea Water RO Membrane Element operates on the principle of reverse osmosis. It uses a semi-permeable membrane to separate salt and impurities from water, allowing only clean water molecules to pass through. As a result, the sea water is desalinated, and the purified water is available for use.
The SW 4040 Sea Water RO Membrane Element is widely used in various industries and applications, including:
Desalination plants
Marine vessels
Oil and gas industry
Resorts and hotels
Municipal Water Treatment: Suitable for large-scale seawater desalination plants providing potable water for coastal municipalities and communities.
Industrial Applications: Used in various industrial processes requiring high-quality water, such as power generation, petrochemicals, and manufacturing.
Offshore Installations: Deployed in offshore platforms, vessels, and marine facilities to provide freshwater supply for drinking, process, and operational needs.
MD offers OEM services for the SW 4040 Sea Water RO Membrane Element. We can provide custom branding, packaging, and specifications tailored to your requirements.
What is the salt rejection rate of the SW 4040 membrane?
What is the lifespan of the SW 4040 membrane?
Can the SW 4040 membrane withstand high pressures?
Is the SW 4040 membrane suitable for drinking water production?
If you have any further questions, please contact us at info@md-desalination.com.
MD is a professional manufacturer and supplier of SW 4040 Sea Water RO Membrane Elements. We offer a wide range of standard and customized membranes for various desalination applications. Our products undergo rigorous testing and certification, ensuring superior quality and performance. We support OEM services, fast delivery, and provide secure packaging options. Contact us at info@md-desalination.com for inquiries or if you require a small-scale desalination system.
