How Does Reverse Osmosis Work?

Reverse osmosis (RO) is a widely-used technology for decontaminating water, with applications in both industrial equipment and household water filtration systems. https://www.md-desalination.com/sea-water-membrane/low-pressure-ro-membranes-sw4040 — It is a water filtration process that employs a semi‑permeable membrane to remove ions, particles, and larger contaminants from drinking water.

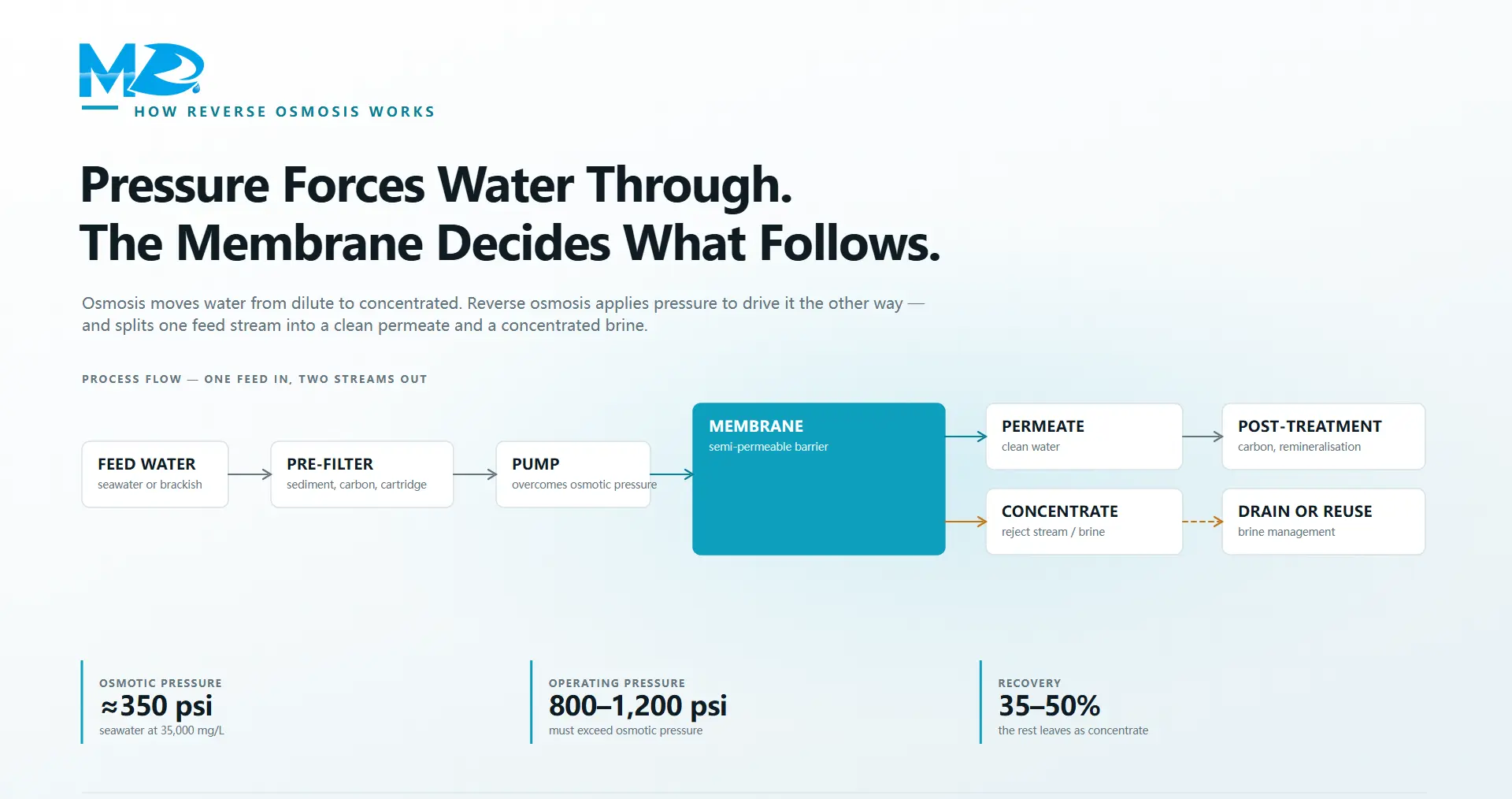

Pre-Filtration: Before water enters the reverse osmosis membrane, it normally passes through a pre-filter arrangement to remove larger particles like silt, sediment, and debris. This helps prevent damage to the membrane.

Reverse Osmosis membrane: The heart of the reverse osmosis system is the semipermeable membrane. This membrane allows water molecules to pass through while blocking larger atoms, ions, and contaminants. When water is forced through the membrane under pressure, it separates into two streams: the permeate (clean water) and the concentrate (contaminants and rejected particles).

Pressure: Pressure is applied to the feed water to overcome the osmotic pressure and force water molecules through the membrane. This pressure is normally supplied by a pump in the RO system.

Permeate: The filtered water, or permeate, passes through the membrane and is collected for use. This water is free from most contaminants, including dissolved salts, minerals, bacteria, and other impurities.

Concentrate: The concentrate, also known as the reject stream or brine, contains the concentrated contaminants that were unable to pass through the membrane. This stream is normally discharged or reused within the water treatment system to improve water recovery.

Post-Treatment: After the reverse osmosis process, the permeate may undergo extra treatment to improve its taste, quality, and mineral content. This may involve passing it through a carbon filter or adding minerals back into the water.

Overall, Reverse osmosis is an effective method for producing high-quality drinking water by removing a wide range of contaminants, making it suitable for various applications, including residential, commercial, and industrial use.

Understanding the Principles of Reverse Osmosis

Reverse osmosis operates on the principle of selectively allowing certain substances to pass through a semi-permeable membrane while blocking others. This process relies on the natural phenomenon of osmosis, where solvent molecules move from an area of low solute concentration to an area of high solute concentration across a semi-permeable membrane to achieve equilibrium. In reverse osmosis, external pressure is applied to overcome the osmotic pressure, forcing water molecules through the membrane, leaving behind contaminants and impurities.

The Components of a Reverse Osmosis System

A typical reverse osmosis system consists of several key components working together to produce purified water. These components include a pre-filter, a semi-permeable membrane, a pressure pump, a post-filter, and a storage tank. The pre-filter removes large particles and sediments, protecting the delicate membrane from damage. The semi-permeable membrane is the heart of the system, selectively allowing water molecules to pass through while rejecting contaminants. The pressure pump applies the necessary pressure to overcome osmotic pressure and facilitate the flow of water through the membrane. The post-filter further polishes the water, removing any remaining impurities before it is stored in the tank for use.

The Reverse Osmosis Process in Detail

The reverse osmosis process begins with pressurized water entering the system. This pressurized water flows through the pre-filter, where sediment and particulate matter are removed. Next, the water is forced through the semi-permeable membrane under high pressure. The membrane acts as a barrier, allowing water molecules to pass through while trapping ions, molecules, and particles larger than the membrane's pore size. As a result, contaminants such as dissolved salts, heavy metals, bacteria, and viruses are effectively removed from the water. The purified water then passes through the post-filter, which further refines its quality by removing any remaining impurities. Finally, the clean water is collected in the storage tank, ready for consumption or further treatment.

Applications of Reverse Osmosis

Reverse osmosis finds a wide range of applications across various industries and sectors. In the industrial sector, RO technology is used for desalination of seawater, providing a sustainable source of freshwater for coastal regions facing water scarcity. It is also employed in the production of ultrapure water for pharmaceutical, semiconductor, and power generation industries, where water quality is critical for manufacturing processes. In the residential sector, reverse osmosis systems are commonly used for home water purification, ensuring safe and clean drinking water for households.

Advantages and Limitations of Reverse Osmosis

One of the primary advantages of reverse osmosis is its ability to remove a wide range of contaminants, including dissolved solids, chemicals, and microorganisms, thereby producing high-quality water. Additionally, RO systems are relatively compact and require minimal maintenance, making them suitable for both industrial and residential applications. However, reverse osmosis also has some limitations. It is a relatively slow process, requiring time to produce purified water. Moreover, RO systems can be water-intensive, as they produce a significant amount of reject water containing concentrated contaminants, which must be disposed of properly.

Environmental Considerations and Sustainability

While reverse osmosis offers effective water purification solutions, it is essential to consider its environmental impact and sustainability. The energy requirements of RO systems, particularly in large-scale desalination plants, can be significant, contributing to greenhouse gas emissions and environmental degradation. Additionally, the disposal of reject water may pose challenges, as it can contain high levels of salts and other contaminants that can harm aquatic ecosystems if not properly managed. Therefore, it is crucial to explore alternative methods and technologies for water purification that prioritize energy efficiency and environmental sustainability.

Conclusion

In conclusion, reverse osmosis is a highly efficient and effective method for purifying water, offering numerous applications across various industries and sectors. By understanding the principles and processes of reverse osmosis, we can appreciate its significance in providing clean and safe drinking water for communities worldwide. However, it is essential to address the environmental challenges associated with RO technology and strive for sustainable water management practices. Through innovation and collaboration, we can harness the potential of reverse osmosis while minimizing its environmental footprint. For inquiries regarding custom applications or purchasing small-scale RO systems, please contact MD at info@md-desalination.com.

References:

1. American Water Works Association. (n.d.). Reverse Osmosis. https://www.awwa.org/resources-tools/water-knowledge/reverse-osmosis

2. National Science Foundation. (2020). How Does Reverse Osmosis Work? https://www.nsf.gov/news/special_reports/science_nation/reverseosmosis.jsp

3. United States Environmental Protection Agency. (2022). Reverse Osmosis Drinking Water Treatment. https://www.epa.gov/sites/production/files/2014-08/documents/2005_11_10_faq_fs_healthseries_ro.pdf
