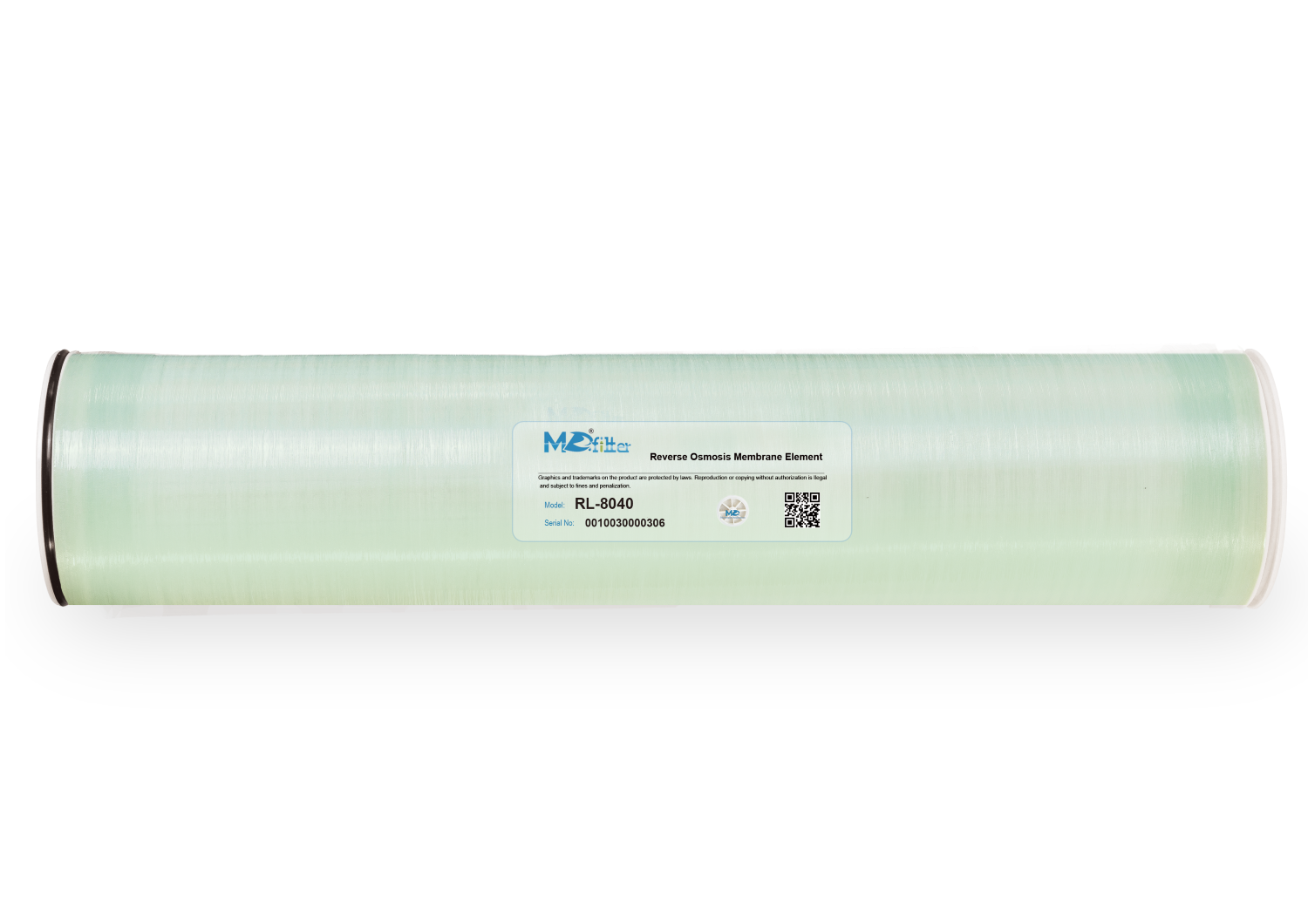

RL-8040
Regular price/
Features
1. High chemical stability
2. High mechanical strength
3. Regenerable
1. High chemical stability
2. High mechanical strength
3. Regenerable
Product Description
Product Overview

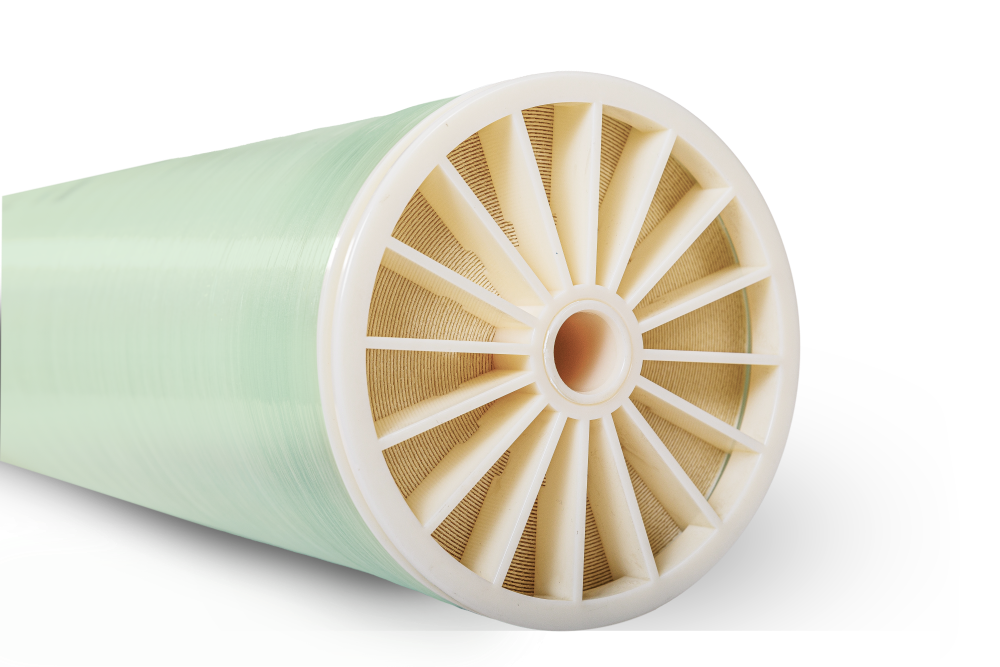

The RL‑8040 is a high‑performance industrial reverse osmosis membrane manufactured by MD. Optimized for large‑scale water purification systems, it delivers outstanding performance and long‑term reliability for diverse industrial water treatment scenarios.

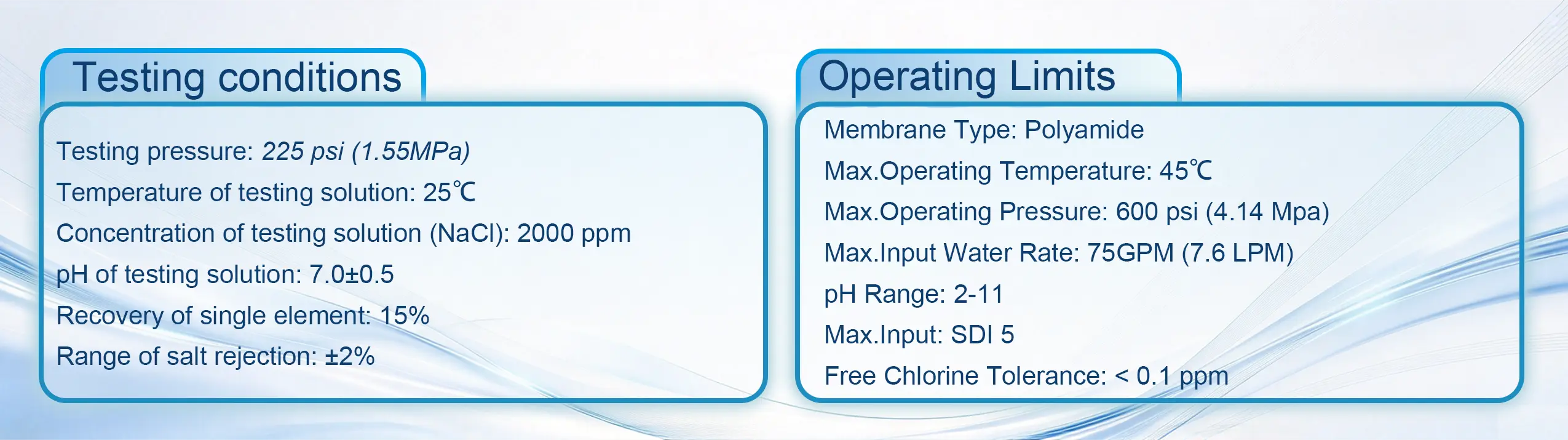

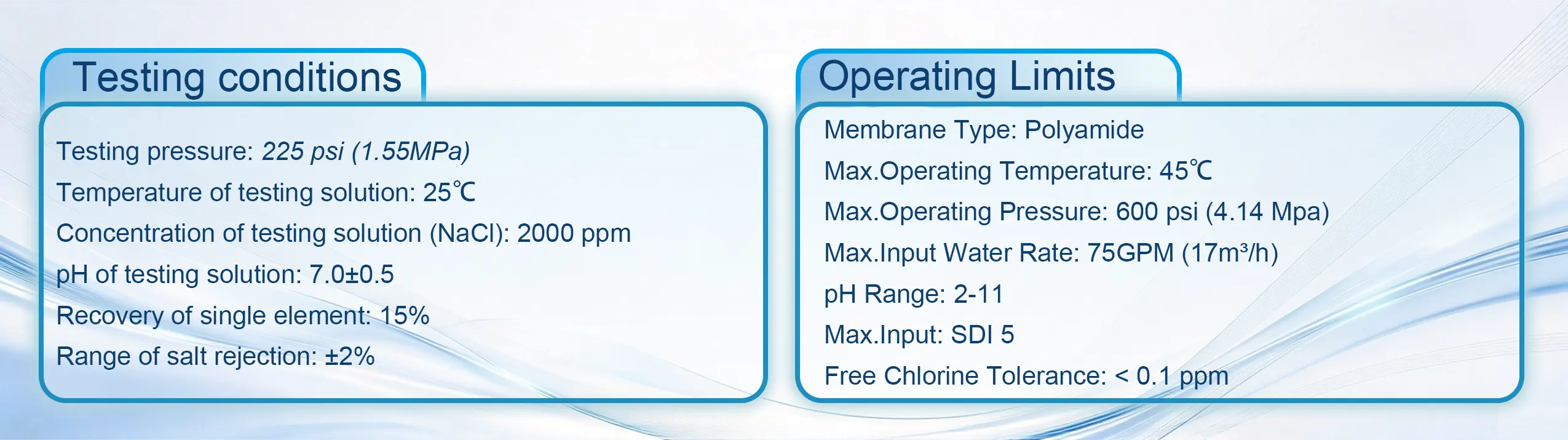

Product Specifications
| Model | RL-8040 | ||||
| Salt Rejection(%) | 99.5% | ||||
| Permeate Flow GPD(m³/d) | 11500(44) | ||||
| Effective Membrane Area ft² (m²) | 400(37) | ||||
| Operating Pressure psi(Mpa) | 225(1.55) | ||||
| Max Operating Pressure psi(Mpa) | 600(4.14) |

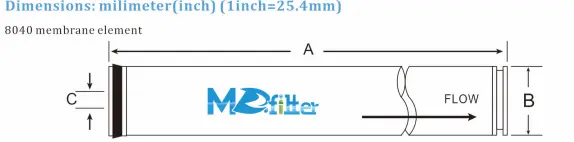

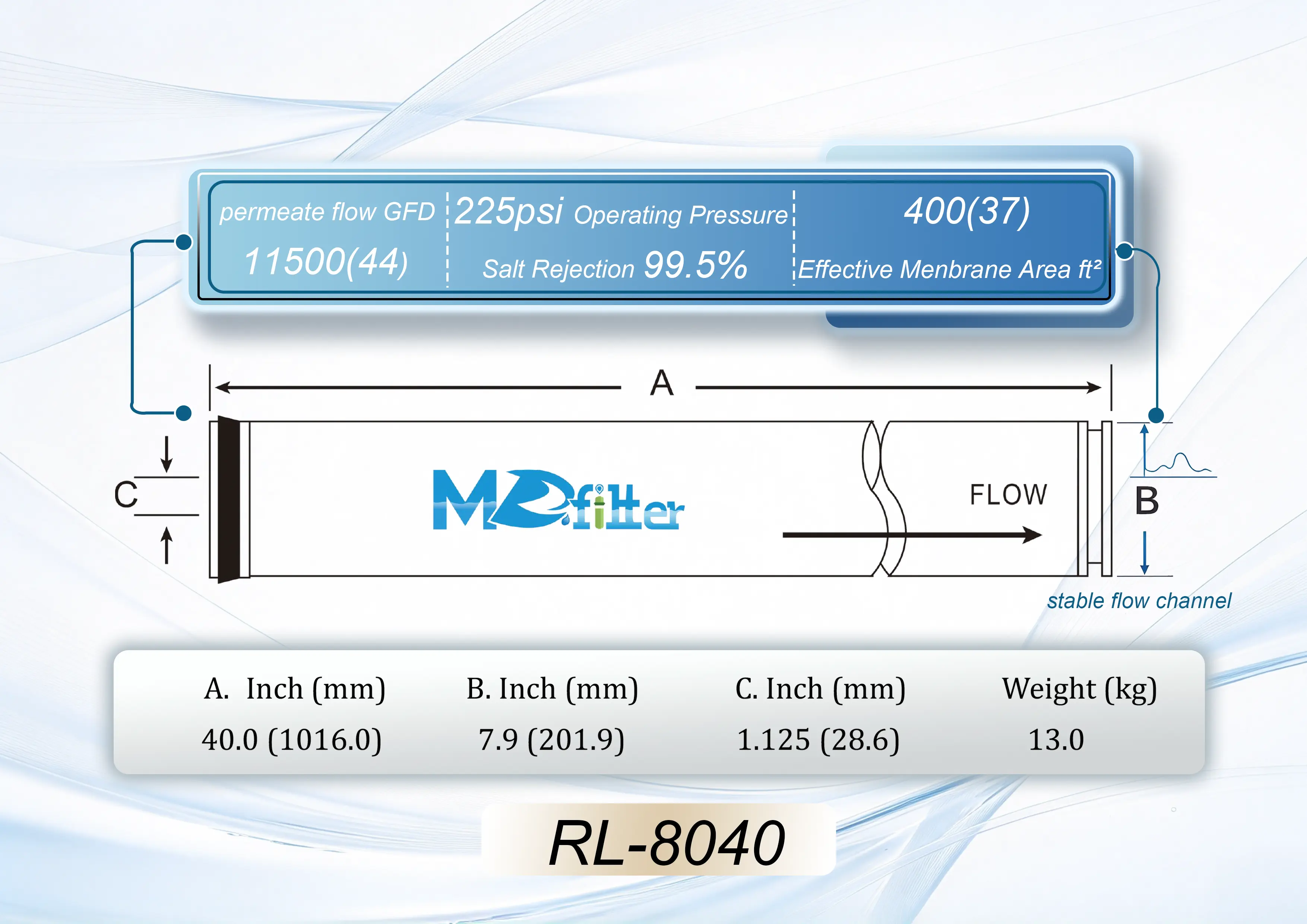

| Model | A/mm | B/mm | C/mm |
| RL-8040 | 1016 | 201.9 | 28.6 |
Product Features
Premium‑grade membrane materials for enhanced service life and durability
Wide operating temperature range to adapt to varied working conditions
Energy‑efficient operation with low overall power consumption
Stable performance under harsh feed‑water conditions
High rejection efficiency: Effectively removes dissolved solids, heavy metals and microorganisms to produce qualified permeate water
High permeate flow: Standard 8040 element dimension provides high water output to satisfy large‑volume industrial water demands
Outstanding cost‑effectiveness: Lower maintenance and replacement costs for long‑term operational savings

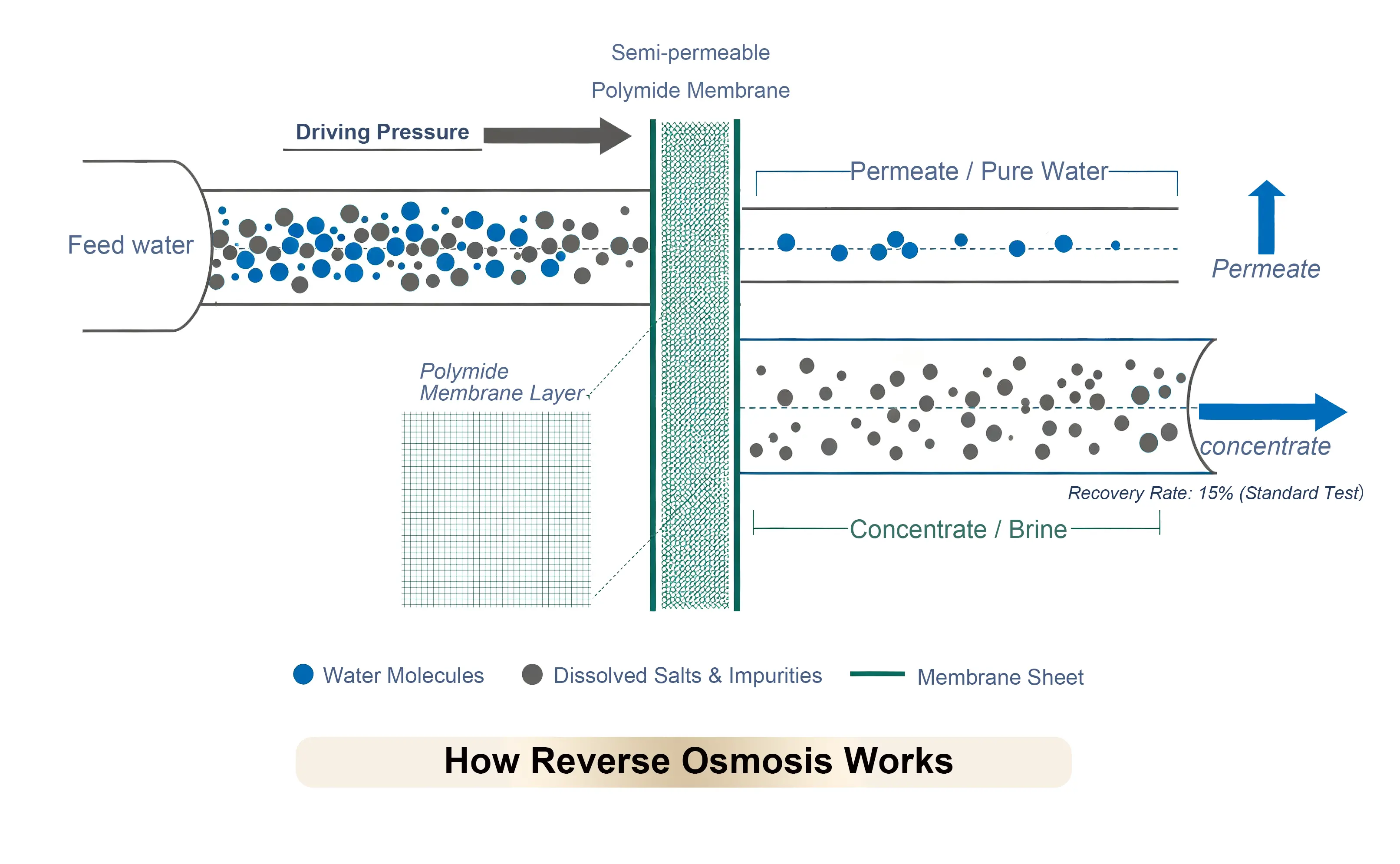

Working Principle
The RL‑8040 adopts advanced semi‑permeable polyamide membrane material. Under driving pressure, it achieves molecular‑level separation to purify incoming feed water.

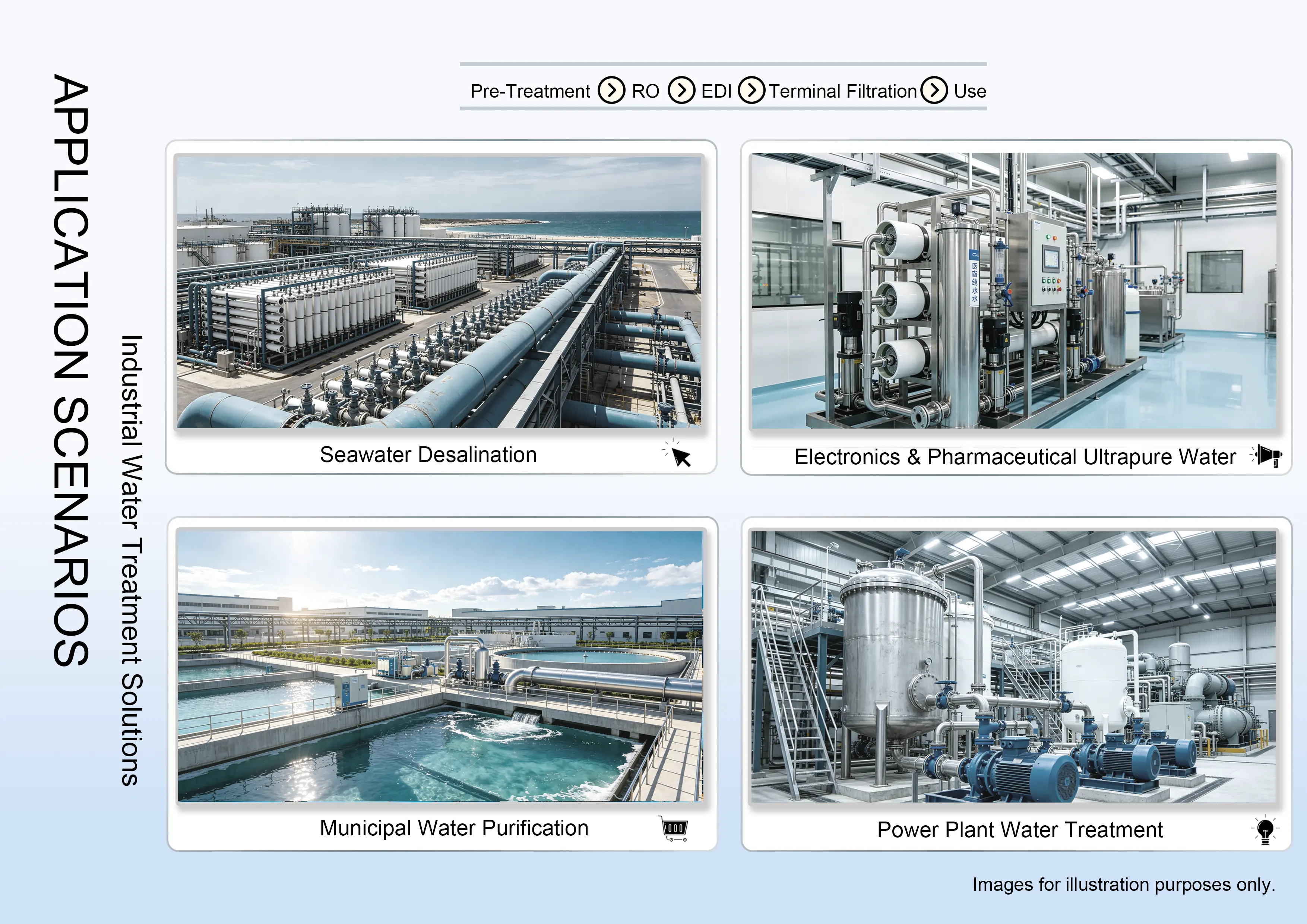

Applications
The RL‑8040 reverse osmosis membrane is widely deployed across multiple industries:
Industrial Water Treatment: Large‑scale water purification for power plants, manufacturing factories and municipal water treatment facilities.
Desalination: Brackish water and seawater desalination to generate fresh potable and process water.
Delivering reliable, high‑quality permeate water, the RL‑8040 is a trusted solution for large‑scale industrial water purification projects.
OEM Services
MD offers comprehensive OEM services for the RL-8040, catering to individual customization requirements. With expertise in product design and manufacturing, MD ensures that the RL-8040 meets specific client needs and specifications.
Frequently Asked Questions
Q: Can the RL-8040 operate in extreme temperatures?
A: Yes, the RL-8040 is designed to withstand temperature ranges from 5°C to 45°C, making it suitable for various environments.
Q: Does the RL-8040 support different power inputs?
A: The RL-8040 operates on 12V DC power input, ensuring compatibility with standard power sources.
Q: Can I use the RL-8040 in my automotive application?
A: Yes, the RL-8040 is commonly used in automotive systems for filtration.
Q: Does MD provide testing and certification for the RL-8040?
A: Yes, MD ensures that the RL-8040 meets all necessary industry standards and certifications through comprehensive testing.
About MD
MD is a leading manufacturer and supplier of RL-8040 products, offering a wide range of standard and customized solutions. With a focus on quality and customer satisfaction, MD provides reliable products, prompt delivery, secure packaging, and exceptional support. For inquiries or to discuss your specific requirements, please contact MD at info@md-desalination.com.
